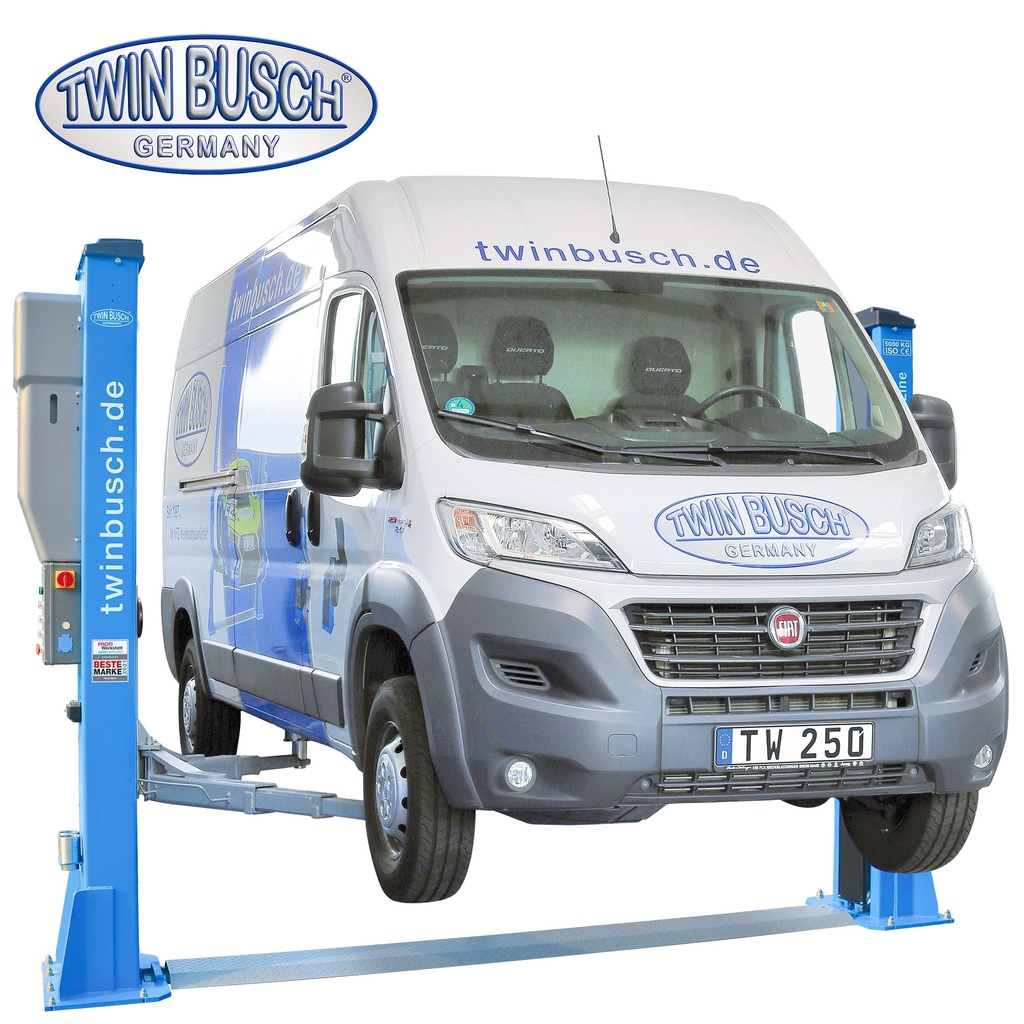

2 column lift 5 tonnes - HEAVY LINE - Automatic
With 5.0 t lifting capacity and 3-times telescopic arms the lift enables to lift a wide range of vehicles safely from small passenger cars (f.ex. smart) up to lightweight vans (f.ex. MB Sprinter, motorhome).
On each post you have a practical holder bracket for the extension adapters.
New:
Anti-Lift-Up-button, allows you to lower the lift without having to raise it before lowering it. A230 V socket is placed in the control box.
Product presentation
Assembly
Features
- Top built quality with CE-certificate
- Manufactured according to ISO 9001 standard
- New: Anti-Lift-Up-button
- New: 230 V socket
- Column cover
- Electrical release
- Emergency lowering valve by power blackout
- Special rolled section column
- 2 hydraulic cylinders for strong lifting and lowering
- Automatic arm locking device
- Synchronisation through steel ropes
- 3 stage telescopic arms
- Practical storage bracket for two extension adapters
- NEW: Motor-Cover included
(Stylish design, dust protection and noise reduction)
Technical Data
TW250-400 - Overview |
||
|---|---|---|
Control unitThe convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working. |
E-MotorPowerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover. |
Arm-locking systemThe support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety. |
Supporting armsFlat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide. |
Door stop protectionThe door stop protects your car doors by preventing them from slamming shut unintentionally. |
Post protection coverThe post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance. |
Flat drive-over plateThe flat drive-over plate of the post lift is only 40 mm high. |
2-stage turntableThe post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm. |
Anti-Lift-Up-ButtonThe anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first. |
230 V socketA handy 230 V socket is located directly on the control box for added convenience. |
Extention adaptersOn each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each. |
Accessories TW236PE-AIRThe optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection. |
Accessories TWLED-2The LED illumination TWLED-2 (optionally available) consists of 4 flexible and magnetic LED light bands / LED strips, a transformer, power and connection cables, a remote control and the necessary assembly and installation material. These LED lights provide a pleasant light in any colour and brightness. |
Accessories TW260RADThe optionally available TW260RAD wheel clamp set of 4 is suitable for vehicles with a wheelbase of max. 3000 mm. It offers optimum accessibility, e.g. when changing the battery. |
Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Delivery contents
- Two-post lift incl. power unit and Motor-Cover
- Height adapter (4 pcs.)
- Bracket for extension adapter
- 12 x heavy duty anchor bolt M16 (16 mm drill bit required)
- Door protection
- Operating and maintenance instructions
- CE-Certificate
- Oil not included – can be optionally ordered
- Car not included
Shipping information
- The lift is supplied in a transport frame.
Shipping dimensions and weights
Video on the expedition
