2-post lift - 4.2 tonnes - BASIC LINE - Garage model
Garage model - Recommended for garages with limited space and low ceilings.

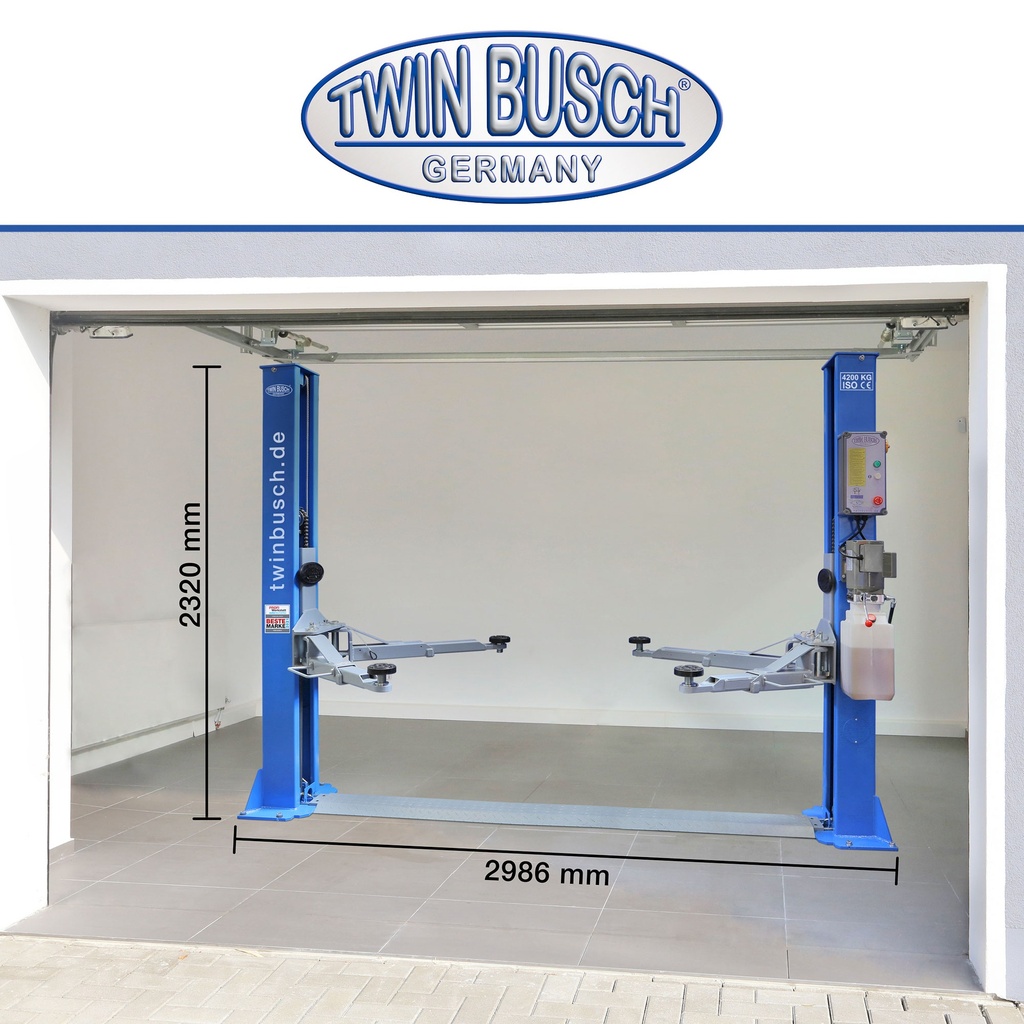

The TW242G is designed for garages with limited space , with its 3 metres wide and a pole height of 2.32 metres, it's perfect for normal garages.
With adjustable lifting pads and a 35 cm flat floor plate.
Features
- 1st class quality built with CE certificate
- Manufactured in accordance with ISO 9001
- Width only 3 m
- Column height 2.32 m
- Lifting height 1.60 m
- Perfect for normal garages
- Mechanical safety locking mechanism
- High-quality support posts with special profiles
- 2 hydraulic cylinders for powerful lifting and lowering
- Automatic arm locking system
- Wire rope synchronisation
- Double manual release
- Telescopic lifting arm
Technical data
Lifting capacity
4200 kg
Maximum lifting height
1600 mm/Ad 1740
Low lifting point
96 mm
Lifting and lowering time (approx.)
45/30 seconds
Power supply
230V
Engine power
2,2 kW
Fuse protection
16 A / type C
Weight
540 kg
Lifting height (lifting pad screwed in)
1600 mm
Lifting height (lifting pad screwed in)
1640 mm
Lifting height (lifting pad+adapter screwed on)
1740 mm
Safety release
Automatic
Lifting cushions
In one step
Carrier adapters
optional
Powder coating
Yes
Protection of the column chain
-
Motor cover
-
Air kit
-
Anti-lift button
No
230 V socket in control box
No
Floor plate
Yes (35 mm)
Overall width / base plate (without motor)
2986 mm
Column height
2324 mm
Depth of concrete required (special solution)
200 mm
Lifting arm length / short
520-715 mm
Lifting arm length / long
620-880 mm
Width between columns
2500 mm
Maximum height
-
Maximum width
2224 mm
Color
RAL 5015 (blue), RAL 7000 (grey)
TW242G - Overview
Product dimensions
Type of vehicle / Wheelbase
This graphic is for information purposes only!
Scope of delivery
- Lift with feed unit
- Heavy-duty anchor bolts (10 pieces)
- Rubber door protectors
- English instruction manual
- Examination booklet and CE certificate
- Oil not included - can be ordered as an option
- Car not included
Shipping information
Shipping to Switzerland - Please request prices by e-mail to info@garagepro.ch, including postcode.
- The lift is supplied in a transport frame.
Shipping dimensions and weights
