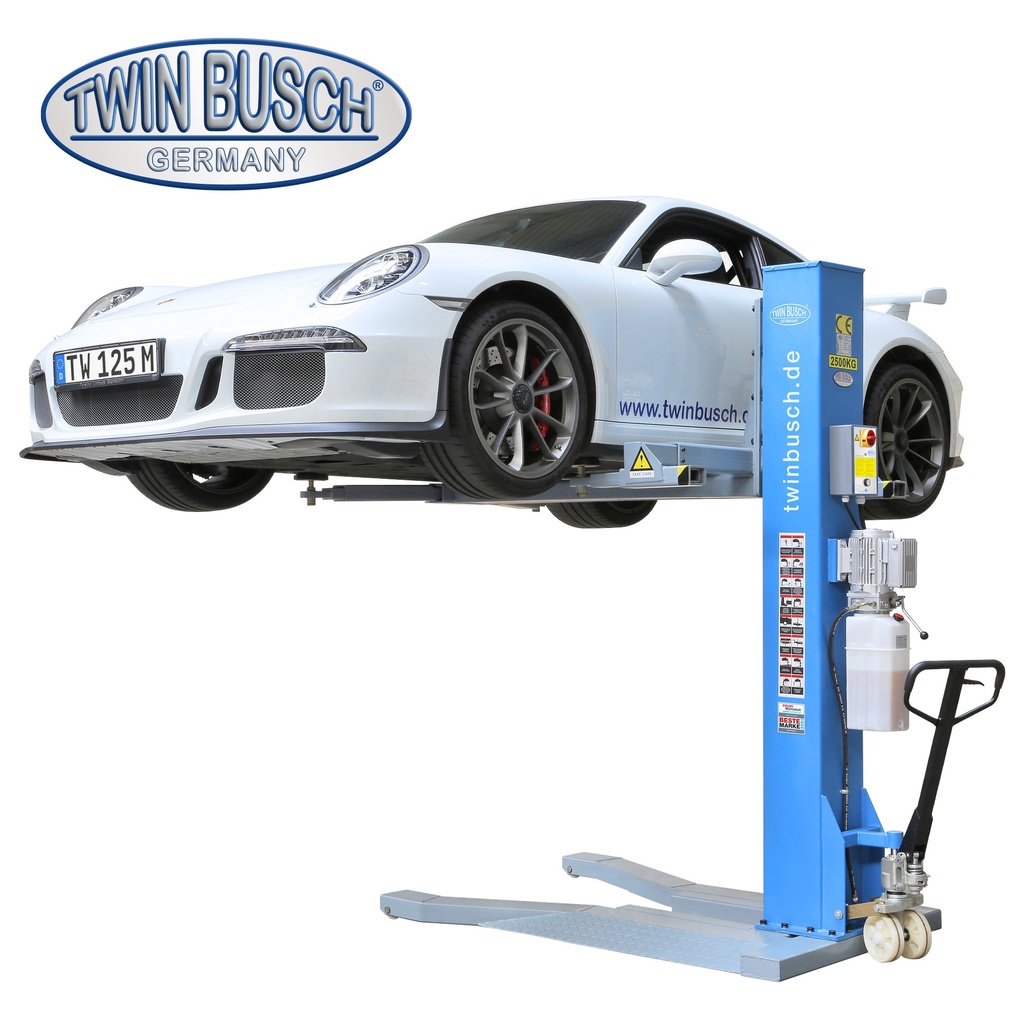

1 post lift - 2.5 tonnes - Portable - Ultra - mobile
2.5 tonne single column lift - Mobile
The new ultra-low model TW125M Ultra has a height of just 85 mm and a free space between the arms of98 mm .
It is therefore the lowest single-column lift of the market.
Ideal for small spaces, it can be moved as easily as a manual forklift and can be installed on any flat, solid floor.
Product presentation
Assembly
Features
- Top quality with CE certificate
- Manufactured to ISO 9001 standard
- Hydraulic cylinder for powerful lifting
- Adjustable lifting pads
- Telescopic lifting arm
- Mechanical security locks
- Manual release of the safety lock
- Columns with special laminated section
- Aluminium motor with 24 V - Control box
- Column chain protection
Technical data
Lifting capacity
2500 kg
Maximum lifting height
1830-1930 mm
Low lifting point
98 mm
Lifting and lowering time (approx.)
35/30 seconds
Power supply
230V
Engine power
2,2 kW
Fuse protection
16 A
Weight
720 kg
Colors
RAL 5015 (bleu), RAL 7000 (gris)
TW125M - Presentation
Product dimensions
Type of vehicle / Wheelbase
This graph is provided for information purposes only!
Scope of delivery
- Single column lift with power unit
- Instructions for use and maintenance
- CE certificates
- Oil not included - can be ordered as an option
- Car not included
Delivery information
Delivery in Switzerland - Please ask for prices by email to info@garagepro.ch with postcode
- Le lift est livré dans un cadre de transport.
Shipping dimensions and weights
Video on the expedition
Specifications
| Couleur | Bleue or Anthracite |
