Auto-Drehscheibe / Schwerlastdrehscheibe für die Überflur-Montage

Rotary table (including ramp) – Floor-mounted installation

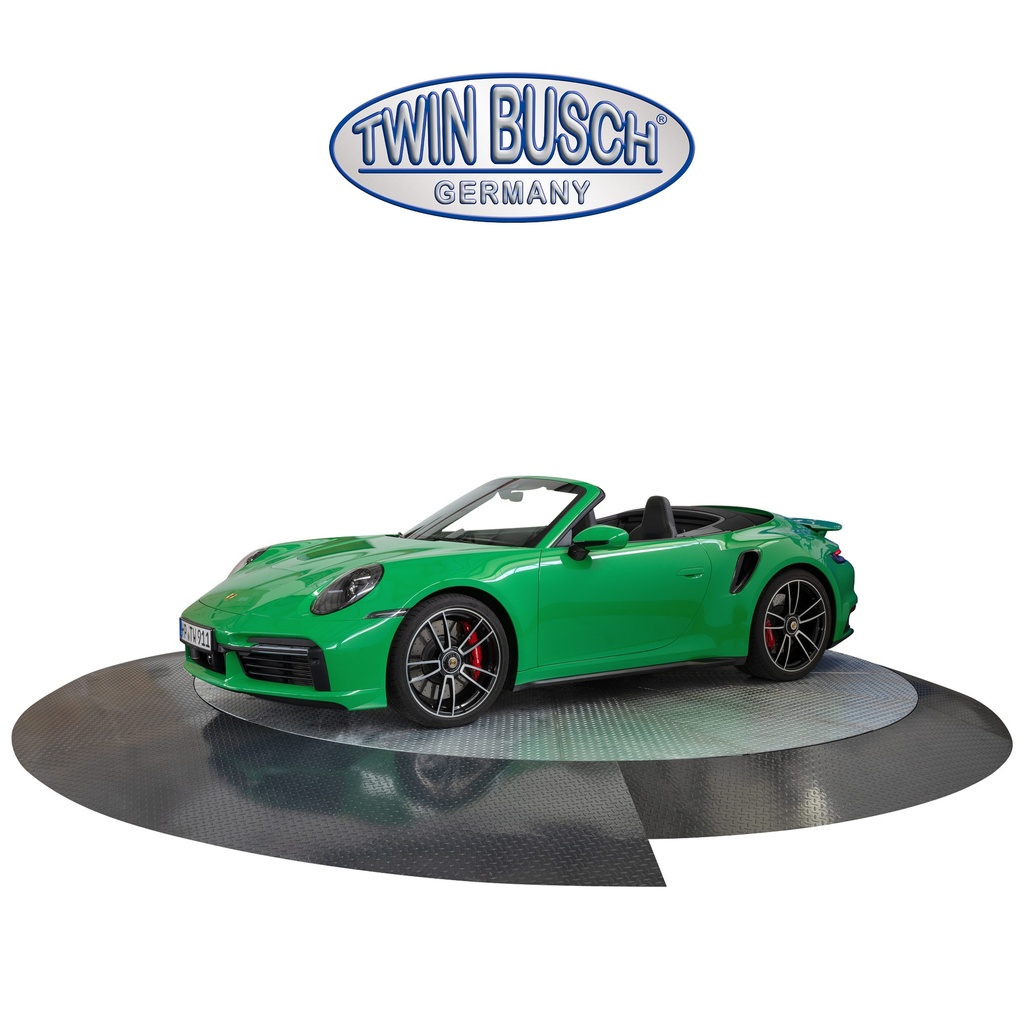

With our TWCTT-450R parking and vehicle turntable, vehicles can be easily rotated on their own axis whilst stationary, even in tight and restricted entry and exit areas. In other words, simply drive onto the turntable, use the remote control to rotate it into the desired position, and drive off.
This results in the following examples of use: courtyard access points, hotels, underground car parks, residential buildings, office and commercial premises, car dealerships, car hire companies, multi-storey car parks, installation in front of single garages and much more.
The TWCTT-450R is also perfect for showcasing vehicles, e.g. at car dealerships or for online car sales to take photographs (360° panoramic views).
The control system is very convenient to use via a wireless remote control, but can also be operated directly on the control unit.
With a diameter of 450 cm, the parking and vehicle turntable is also suitable for medium-sized vans such as the MB Sprinter (standard) or large SUVs.
The entire substructure is hot-dip galvanised, making the turntable suitable for outdoor use.
The turntable is fitted with non-slip chequered plate panels.

Special features

Technical Data
Diameter turntable	4500 mm
Drive-on height	175 mm
Load capacity	3000 kg
Power supply	400 V
Motor power	0,75 kW
Fusing	16 A
Weight (approx.)	1470 kg

TWCTT-450R - Overview
Flexibility With the TWCTT-450R, the vehicle can be easily rotated around its own axis while stationary in tight and restricted access areas. It is also perfect for presenting vehicles (360° panoramic view).	Control unit Convenient control is provided by the easy-to-use control unit or a radio remote control.
Rotation The TWCTT-450R is powered by four electric motors and offers particularly smooth rotation thanks to low-maintenance castors.	Galvanized The components of the turntable are hot-dip galvanised and thus optimally protected against corrosion.
Work surface The non-slip, ribbed work surface ensures that the vehicle is held securely on the turntable.

Contents of the delivery
