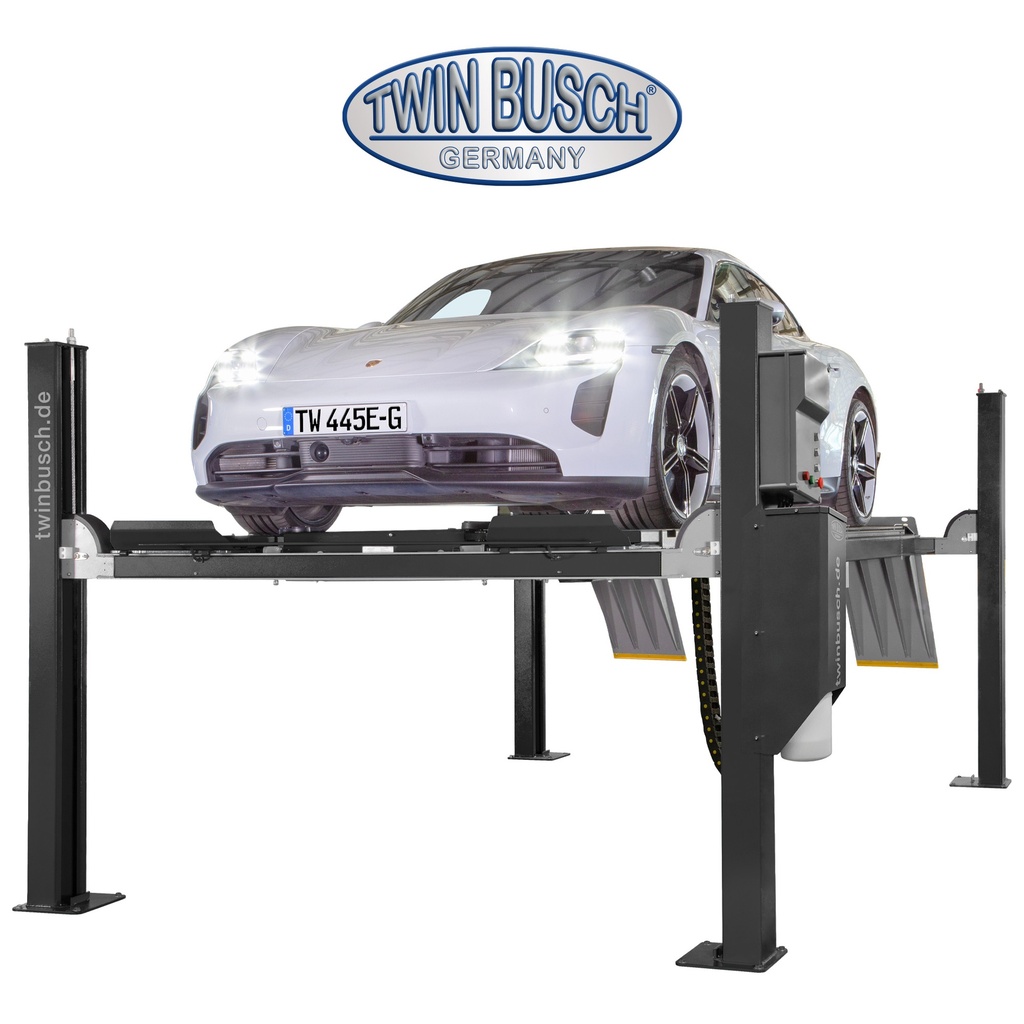

Four-post parking lift – 4.5 tonnes
Electro-hydraulic 4-post lift.
Optional extras include a central hydraulic axle jack and turntables.
The four-post lift can lift anything from passenger cars to lorries.
Product overview
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Lifting capacity: 4,500 kg
- Certificat CE
- IP 54 control box with 24V control unit
- 24V limit switch
- Hydraulic overflow valve
- Protection against vehicle rollover
- Secure the beam along its entire lifting height
- Cord and cable breaking device
- Rear sliding panels
- Foot protection
- Acoustic warning signal
- Maximum wheelbase for alignment: 3700 mm
- Maximum wheelbase of the forklift: 4320 mm
Technical data
Lifting capacity
4500 kg
Max. lift height
1850 mm
Length of the track
4510 mm
Track width
536 mm
Minimum height
126 mm
Lifting and lowering time (approx.)
50 seconds
Power supply
400 V / 3 phases
Engine power
2,2 kW
Fuse protection
16 A
Weight
1400 kg
Colour
RAL 5015 (Blue), RAL 7000 (Grey)
TW445 – Overview
Product dimensions
Contents of the delivery
- Four-post lift, including the drive unit
- Instructions for use and care
- Certificat CE
- Optional: turntables
- Option: central cylinder (2 t / pneumatic)
- Oil is not included – it can be ordered as an optional extra
- Car not included
Informations sur l'expédition
Expédition en Suisse -
Veuillez
demander les prix par e-mail à info@garagepro.ch avec le code postal
- The lift is supplied in a transport frame.
Dimensions et poids pour l'expédition
Video about the expedition
prix hors frais d'expédition
