2-Säulen-Hebebühne TW242PEB4.3-400 - 4,2 Tonnen

Détails
Téléchargements

Elévateur à 2 colonnes - 4,2 tonnes - sans bride - Profi-Line.

2-Säulen-Hebebühne - 4,2 Tonnen - ohne Flansch - Profi-Line.
Die Profi-Line-Hebebühne ist mit einer automatischen Sicherheitsentriegelung, höhenverstellbaren Hubschuhen, Transportadaptern, einem freien Bodenweg und einem automatischen Endschalter ausgestattet, der die Stromzufuhr unterbricht, wenn ein Fahrzeug die Höhengrenze erreicht.
Jeder Pfosten hat eine praktische Halterung für Verlängerungsadapter.
Neu:
Anti-Lift-Up-Taster , zum gezielten Absenken des Lifts ohne vorheriges automatisches Anheben. Und eine praktische 230-V-Steckdose direkt am Schaltkasten.

Präsentation des Produkts

Montage

Eigenschaften

Top-Bauqualität mit CE-Zertifikat
Hergestellt nach derISO 9001-Norm
New: Anti-Lift-Up-button
Neu: 230 V Steckdose
Abdeckung der Säule
Elektrische Veröffentlichung
Spezielle Walzprofilsäule
2 Hydraulikzylinder für starkes Heben und Senken
Automatische Arretiervorrichtung
Synchronisation durch Stahlseile
2-stufige Teleskoparme
Hubhöhe 4300 mm
Praktische Halterung für zwei Verlängerungsadapter
NEW: Motor-Cover included
(Stylish design, dust protection and noise reduction)

Technische Daten

Hebekapazität

4200 kg

Max. Hubhöhe

1900 mm/Ad 2010

Niedriger Hebepunkt

96 mm

Zeit für Heben und Senken (ca.)

45/30 secondes

Stromversorgung

400V / 3 Phasen

Motorleistung

2,2 kW

Sicherungsschutz

16 A / type C

Gewicht

700 kg

Hubhöhe (Hebekissen eingeschraubt)

1900 mm

Hubhöhe (Hebekissen herausgeschraubt)

1960 mm

Hubhöhe (Hebekissen+Adapter herausgeschraubt)

2060 mm

Sicherheitsauslösung

Automatisch

Hebekissen

2-Gang

Transportadapter

enthalten

Pulverbeschichtet

Ja

Säulen-Kettenschutz

enthalten

Motor-Abdeckung

enthalten

Air-Kit

optional

Anti-Lift-Up-Knopf

Ja

230-V-Steckdose im Schaltkasten

Ja

Bodenplatte

klarer Boden

Gesamtbreite / Bodenplatte (ohne Motor)

3436 mm

Pfostenhöhe

4300 mm

Erforderliche Betontiefe (Sonderlösung)

200 mm

Hebearmlänge / kurz

740 - 1150 mm

Länge des Hebearms / lang

890 - 1390 mm

Breite zwischen den Pfosten

2850 mm

Max. Höhe

4135 mm

Max. Breite

2574 mm

Couleur

RAL 5015 (Bleu), RAL 7000 (Gris)

TW242PEB4.3-400 - Overview
Clear floor The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.	Control unit The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.	E-Motor Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.
Arm-locking system The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.	Supporting arms Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.	Door stop protection The door stop protects your car doors by preventing them from slamming shut unintentionally.
Post protection cover The lift is equipped with a manual release on only one side (single-lock).	2-stage turntable The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.	Anti-Lift-Up-Button The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.
230 V socket A handy 230 V socket is located directly on the control box for added convenience.	Extention adapters On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.	Accessories TW236PE-AIR The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.
Accessories TWLED-2B The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.	Accessories TW242-GPV The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.

TW242PEB4.3-400 - Overview

Clear floor

The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

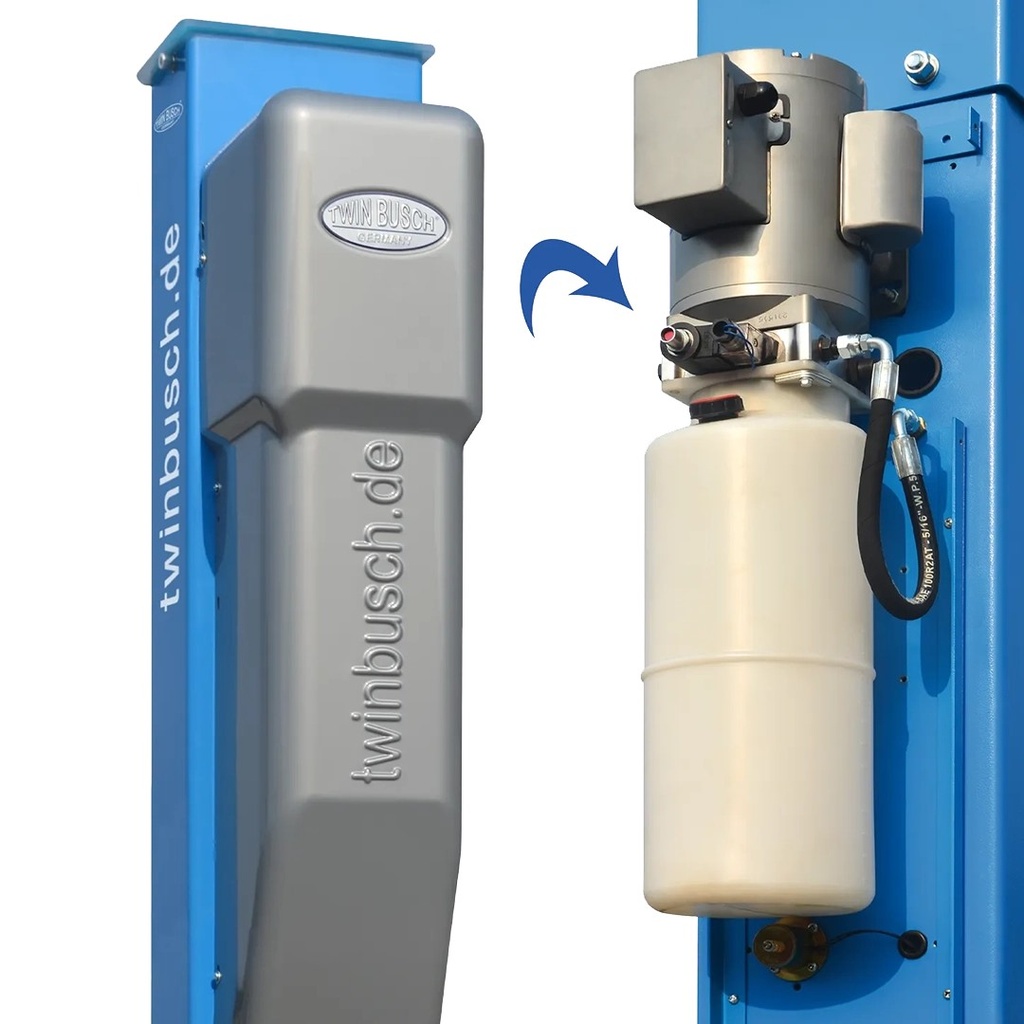

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.

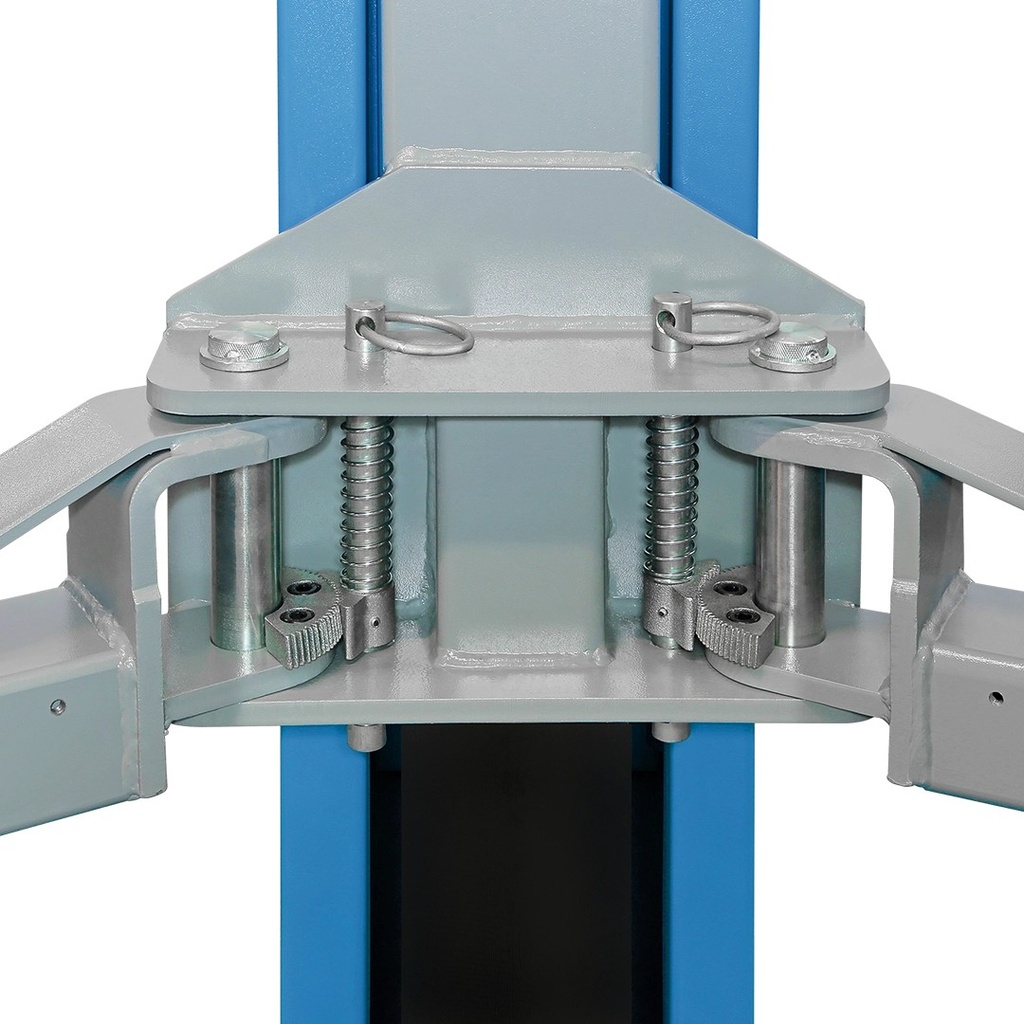

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

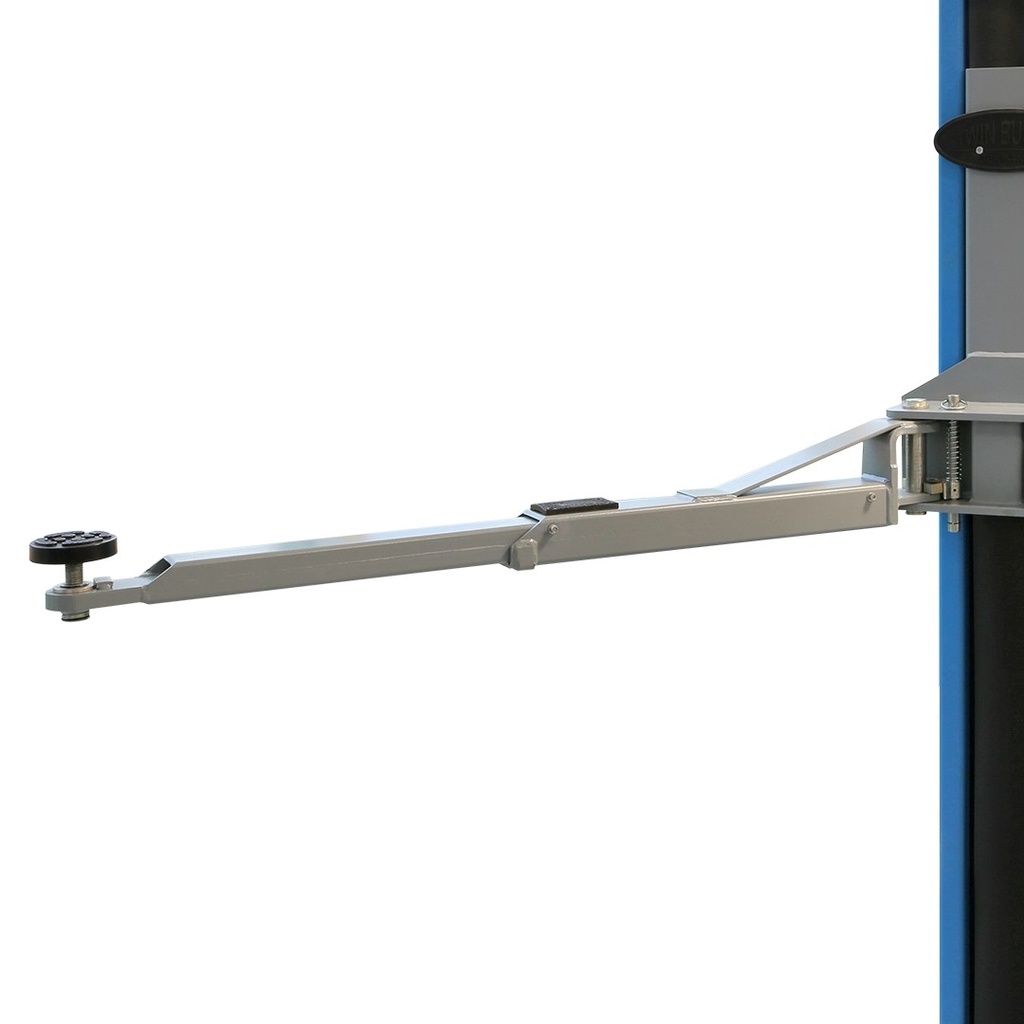

Supporting arms

Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

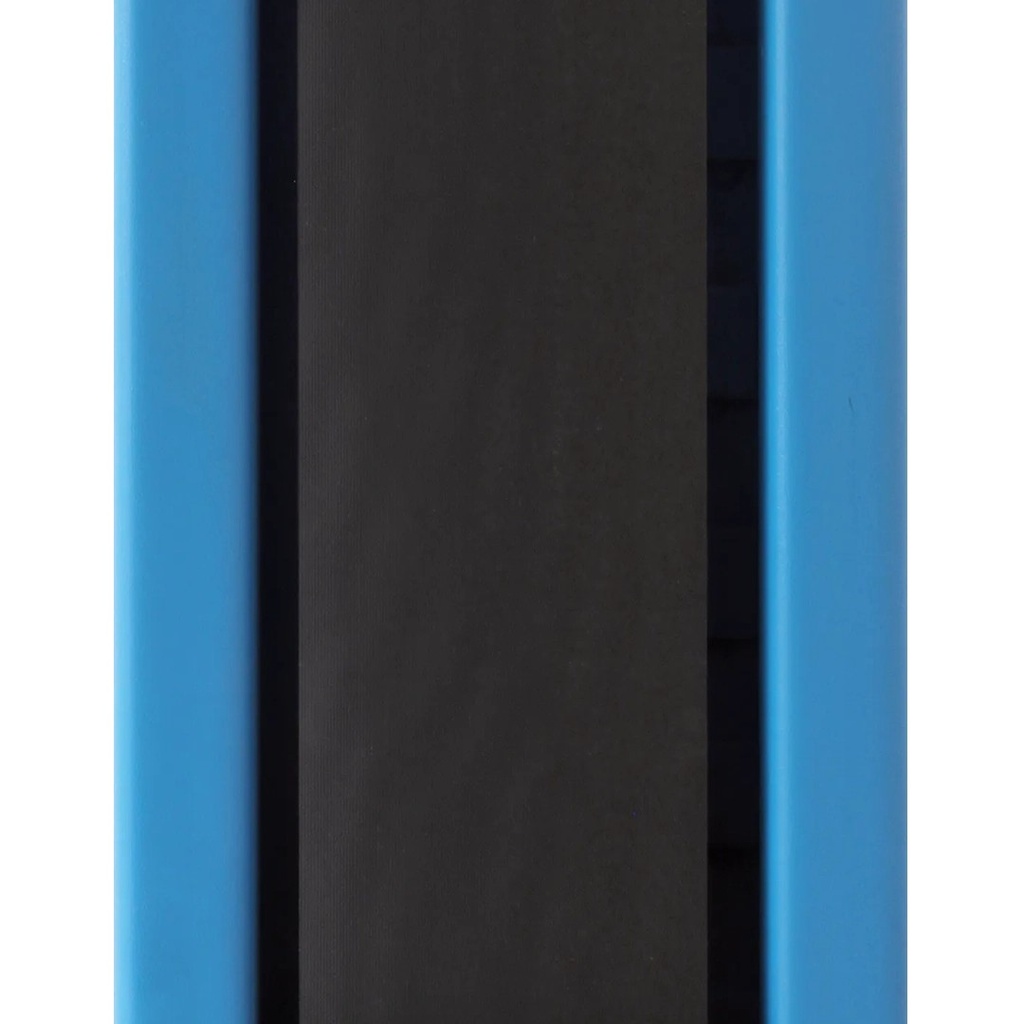

Post protection cover

The lift is equipped with a manual release on only one side (single-lock).

2-stage turntable

The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.

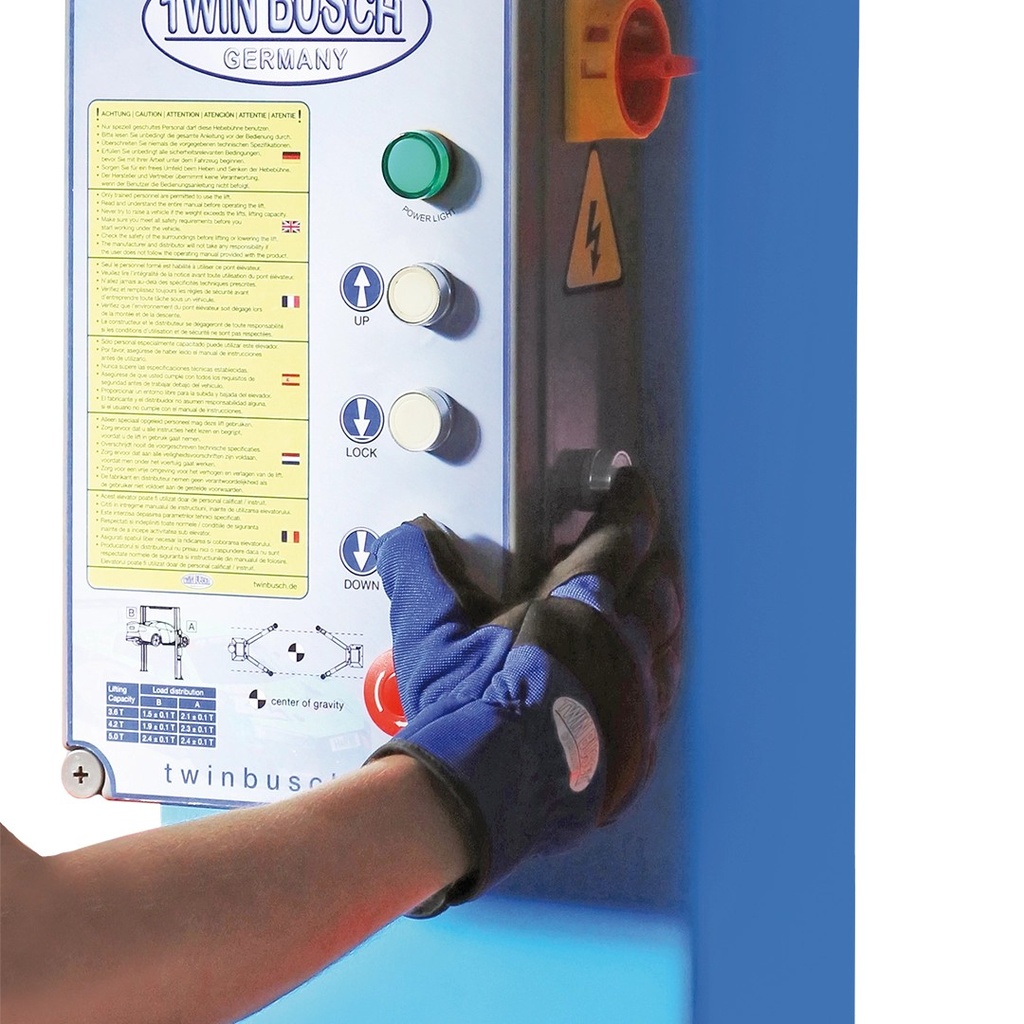

Anti-Lift-Up-Button

The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.

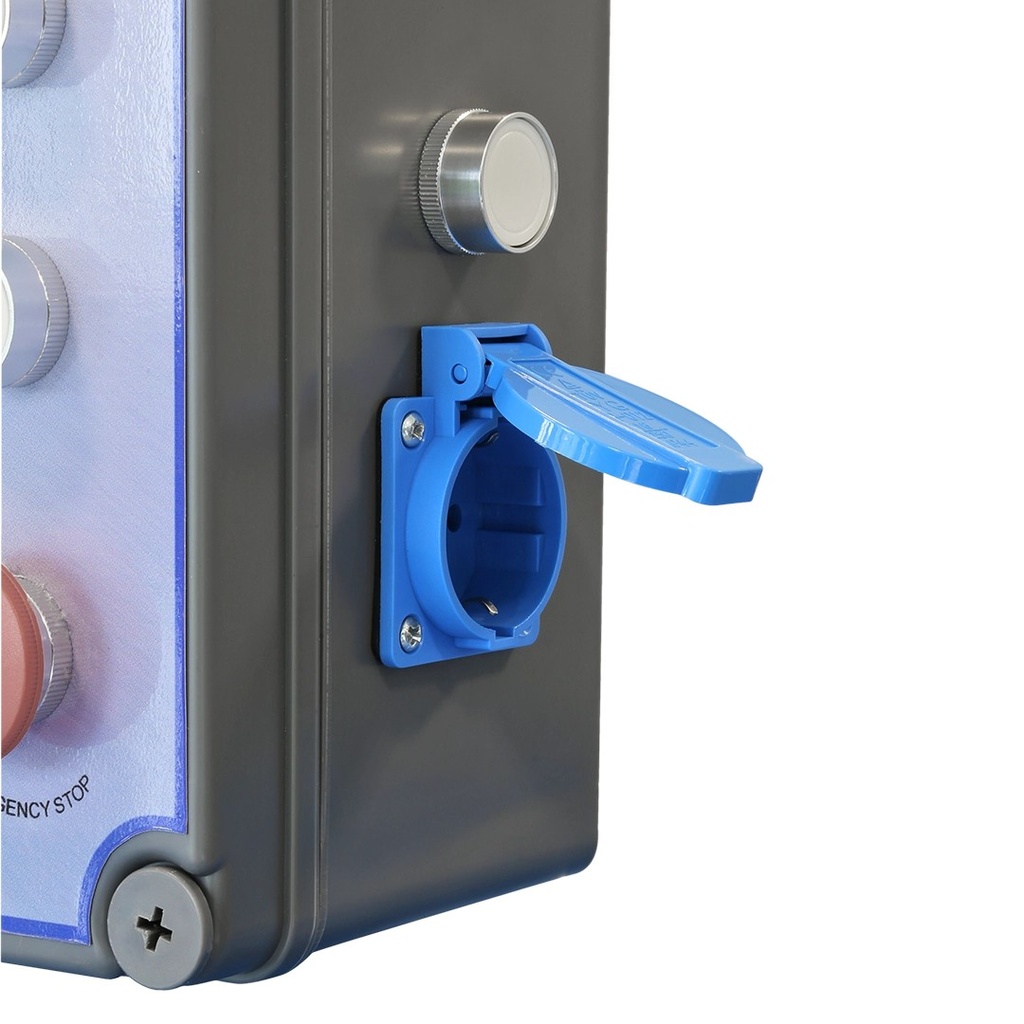

230 V socket

A handy 230 V socket is located directly on the control box for added convenience.

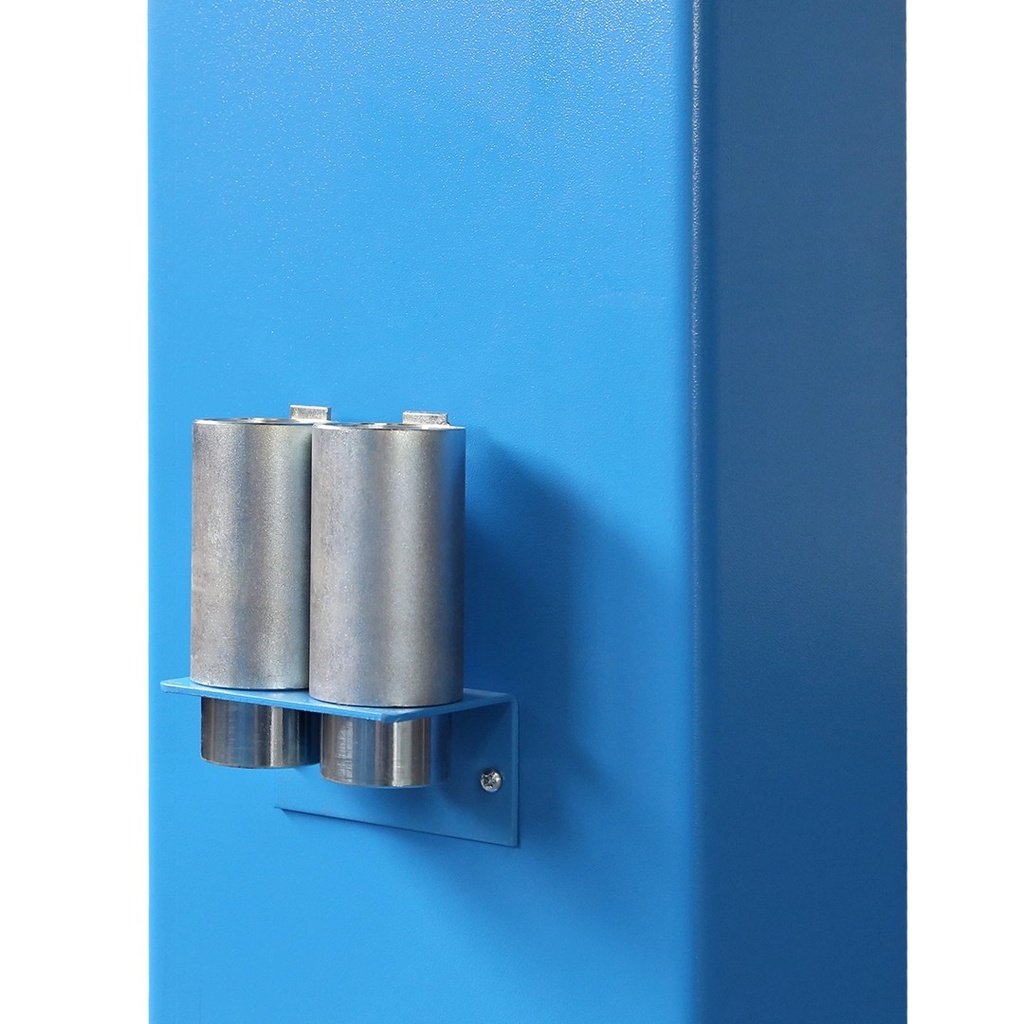

Extention adapters

On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.

Accessories TW236PE-AIR

The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.

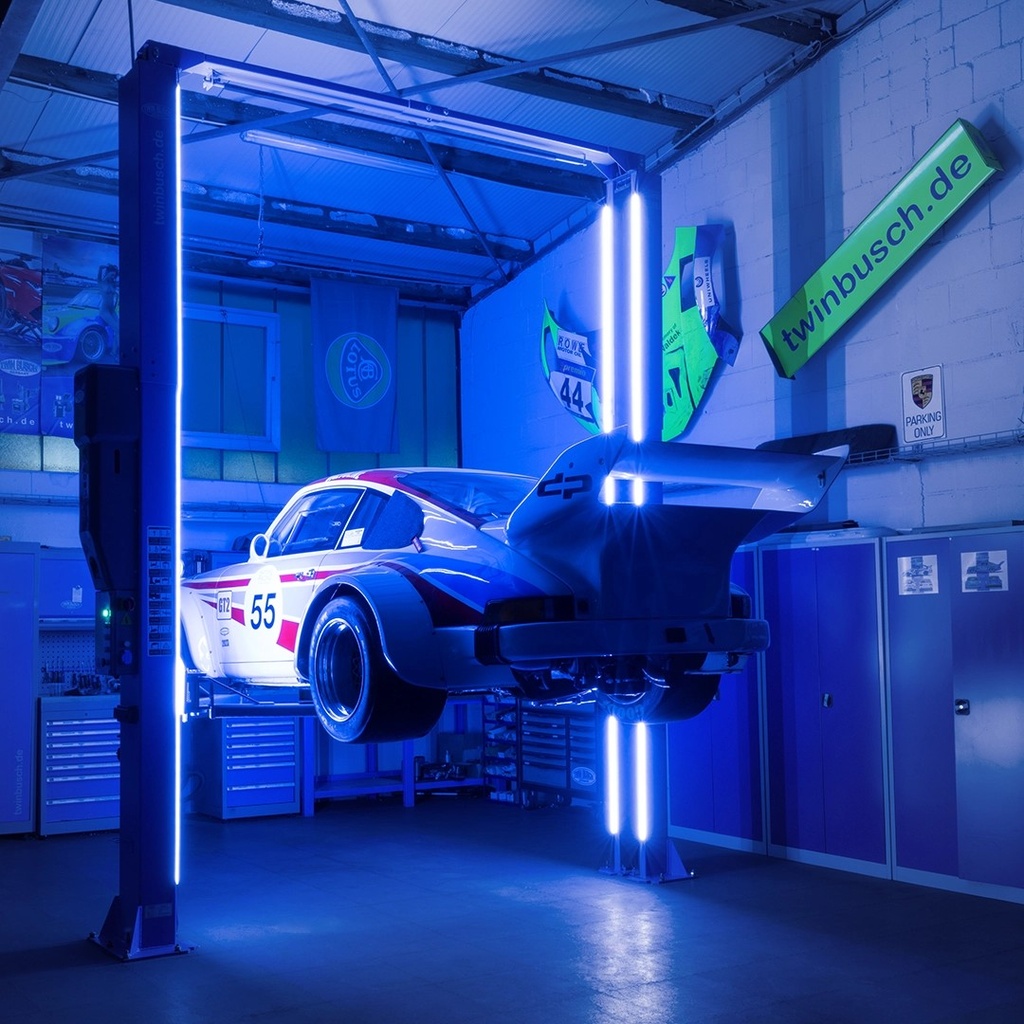

Accessories TWLED-2B

The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.

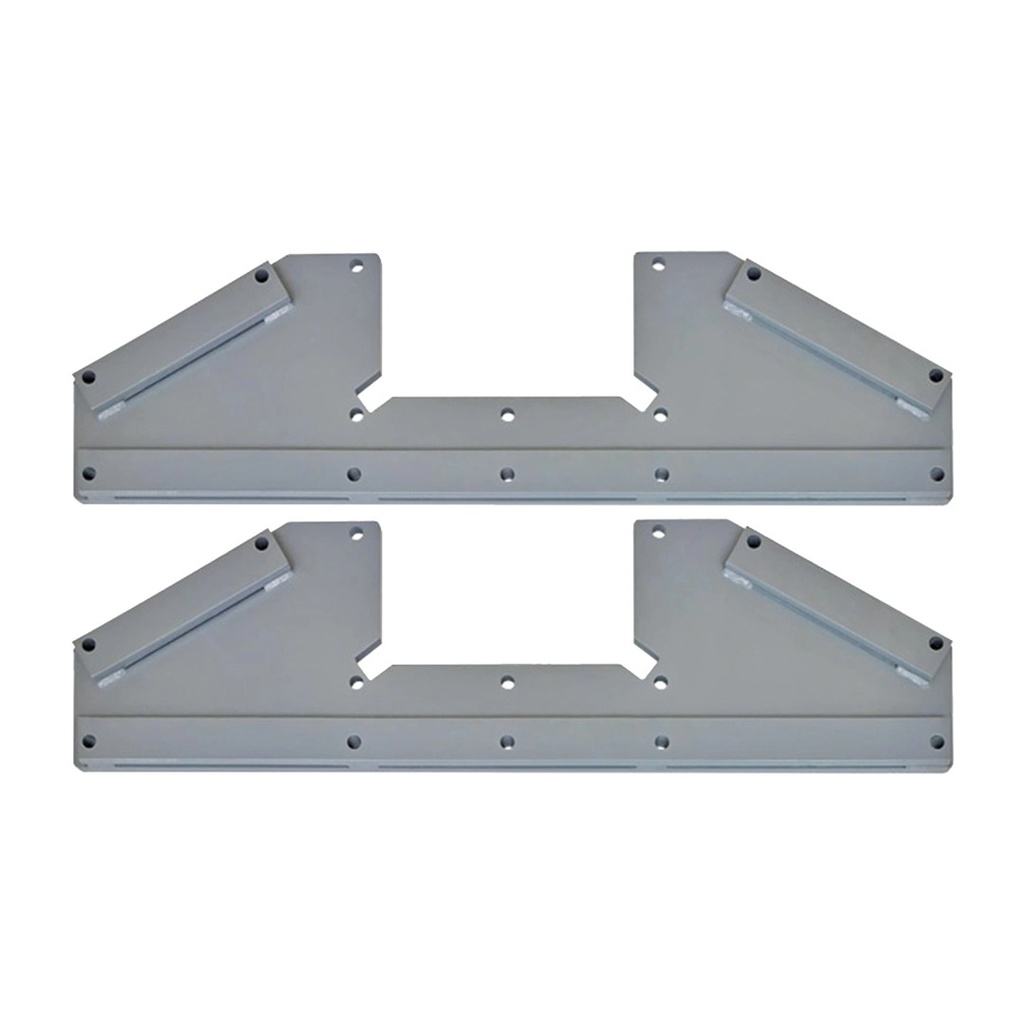

Accessories TW242-GPV

The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.

Abmessungen des Produkts

Fahrzeugtyp / Radstand

Diese Grafik dient nur zu Informationszwecken!

Inhalt der Lieferung

Zwei-Säulen-Hebebühne inkl. Aggregat und Motor-Cover
Höhenadapter
Halterung für Verlängerungsadapter
10 x Schwerlastankerbolzen M16 (16 mm Bohrer erforderlich)
Schutz der Türen
Betriebs- und Wartungsanleitung
CE-Zertifikat
Öl nicht enthalten - kann optional bestellt werden
Auto nicht inbegriffen

Informationen zum Versand

Versand in die Schweiz

Der Lift wird in einem Transportgestell geliefert.

Versandmaße und Gewichte

Video über die Expedition
