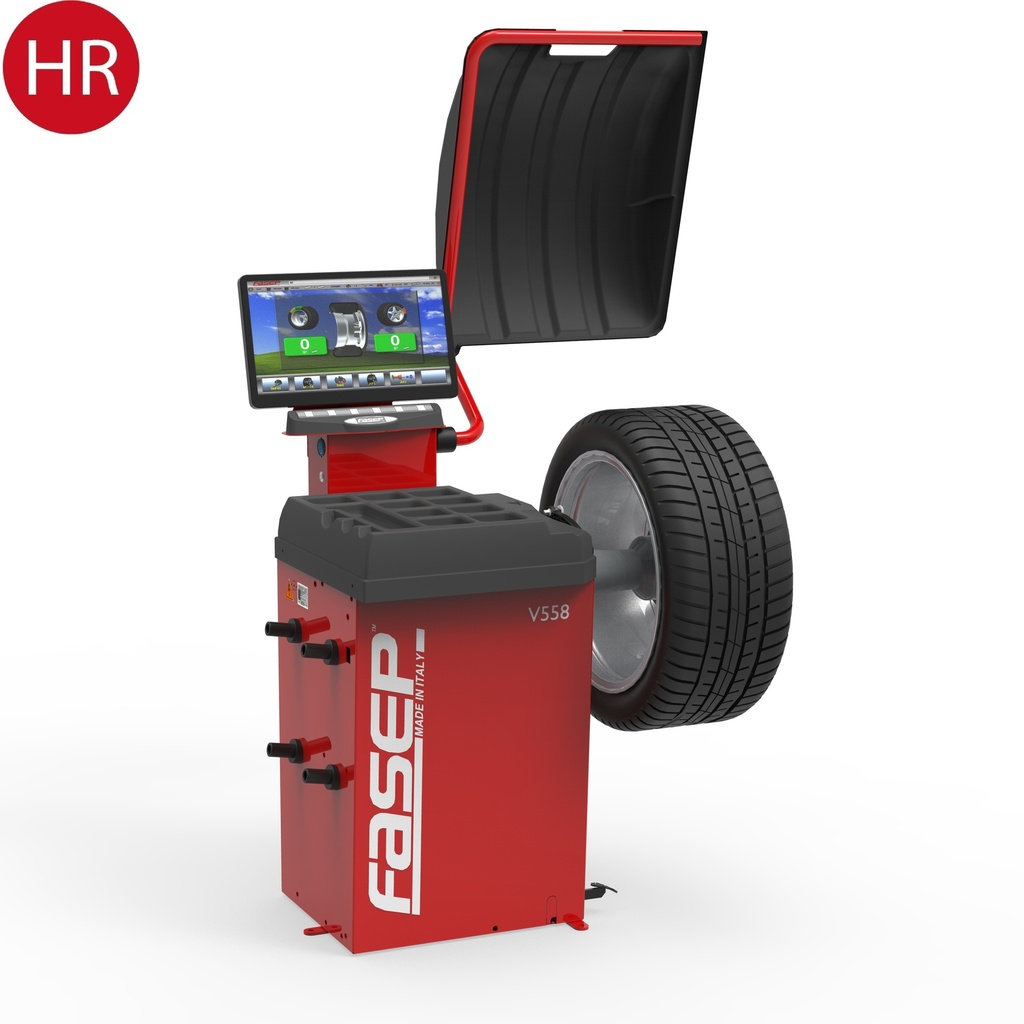

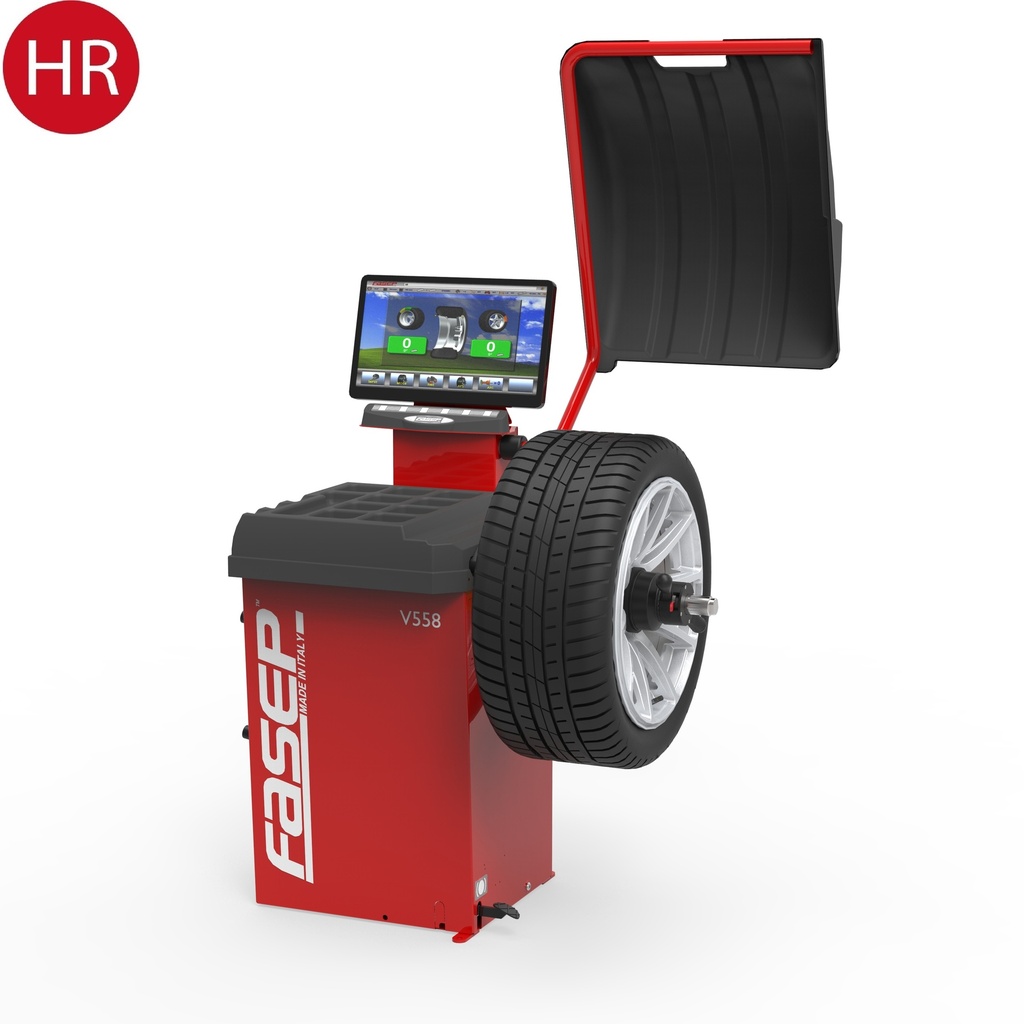

Wheel balancer (V558 Crossfire)

https://www.garagepro.ch/web/image/product.template/52078/image_1920?unique=3db9427

CHF 3 699,35 3699.35 CHF CHF 3 699,35 Hors TVA

CHF 3 699,35 Hors TVA

Veuillez nous contacter pour toute commande

Cette combinaison n'existe pas.

​
Contactez-nous

Wheel balancer (V558 Crossfire)

V558 is the video balancer where you get all that is needed and no frills. V558 incorporates the newest lowspeed with 16-bit technology from FASEP like other top range balancers and offers all possibilities to get perfectly balanced tires.

Technical features

Caractéristique Valeur
Computerized Automatic Wheel BalancerYes
Suitable forCar, Vans, SUVs and Light Trucks wheels
Electronics32-bit high-tech G6.SMART
Motor3Ph with electronic control (inverter)
Rotation speedLow Speed (98 RPM)
Monitor19" LCD
Operating SystemWinCE
SoftwareBASIC level wheel balancing
Flange systemIFS Heavy Duty (max 90 kg)
Measuring systemTRI.S3NSOR – 3 Piezo sensors
Shaft diameter40 mm
Shaft height700 mm
Flange offset250 mm
Shaft length210 mm
Position sensor256 steps
BasementEasy ALU
Wheel fixingQuick-Lock nut
BrakeElectric Brake DCB (brake-in-position)
Start systemAutomatic Start-Stop
Positioning systemAPS2 Automatic (with run-time correction) (G3 only)
Data input2D automatic (distance + diameter)
Wheel guardAutomatic start of wheel spin
Weights holderABS – 9 compartments weights, 3 cones, 1 tools
CalibrationSelf Calibration with calibration weight
DiagnosticsSelf Diagnostic
Flange CalibrationAFC (Automatic Flange Calibration)
ALU programsStick-on weights
ALU-SE / Alu-PAXStick-on weights application
AUTOSELECT2Automatic balancing mode selection (DYN-ALU)
OptimizationTire-Rim Dynamic Unbalance Match Programme
ASF FunctionsALU-Mat, ALU-Din
MOTO programYes
User SetupYes
SPLIT programHidden weights
FAST programYes
MARSStatic minimization
DOUBLE OPERATORYes
STATS programYes
FCC programYes
Cones42–98 mm
Max wheel weight90 kg
Rim diameter8–26"
Max wheel diameter864 mm (34") with wheel-guard
Max wheel width415 mm (16")
Power200–240 VAC, 50–60 Hz, 1Ph INV
