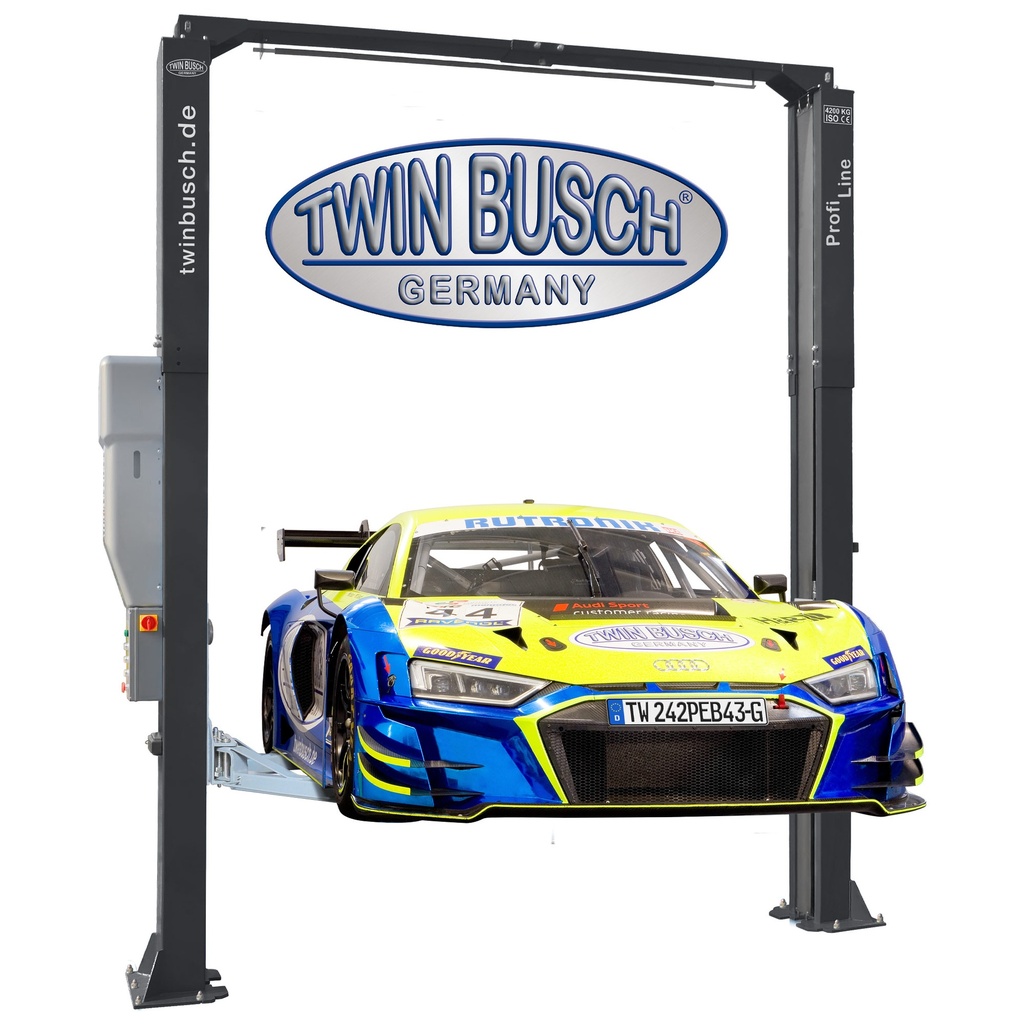

Name: Ascensore a 2 montanti - piano libero - Profi-Line - Linea grigia
Price: 3033.3 CHF
Availability: InStock

380 Volt

CHF 3.033,30 IVA esclusa

Aggiungi al carrello

Aggiungi alla lista dei desideri

Documenti

TW242PEB4.3-400-G_de_handbuch TW242PEB4.3-400-G_en_manual TW242PEB4.3-400_datasheet.pdf TW242PEB4.3-400_fondation_plan.pdf TW242PEB4.3-400_fr_manuel.pdf

Elévateur à 2 colonnes - 4,2 tonnes - sans bride - Profi-Line.

L'élévateur Profi-Line est équipé d'un système de déverrouillage automatique de sécurité, de patins de levage réglables en hauteur, d'adaptateurs de transport, d'un passage au sol dégagé et d'un interrupteur de fin de course automatique, qui coupe l'alimentation électrique si un véhicule atteint la limite de hauteur.
Chaque poteau est doté d'un support de montage pratique pour les adaptateurs d'extension.
Nouveau :
Bouton anti-soulèvement, pour l'abaissement ciblé du lift sans levage automatique préalable. Et une prise pratique de 230 V directement sur le boîtier de commande.

Présentation du produit

Assemblage

Caractéristiques

Qualità costruttiva superiore con certificato CE
Fabriqué selon la norme ISO 9001
Nuovo: Pulsante anti-sollevamento
Nuovo: presa da 230 V
Couverture de colonne
Rilascio elettrico
Colonne à profilé spécial
2 cylindres hydrauliques pour un levage et un abaissement puissants
Dispositif de verrouillage automatique du bras
Synchronisation par câbles d'acier
Bras télescopiques à 2 étages
Altezza di sollevamento 4300 mm
Support de rangement pratique pour deux adaptateurs d'extension
NUOVO: Copertura del motore inclusa
(Stylish design, dust protection and noise reduction)

Données techniques

Capacità di sollevamento

4200 kg

Altezza massima di sollevamento

1900 mm/Ad2010

Punto di sollevamento basso

96 mm

Tempo di sollevamento e abbassamento (circa)

45/30 secondes

Alimentazione

400V / 3 phases

Potenza del motore

2,2 kW

Protezione con fusibili

16 A / type C

Peso

700 kg

Altezza di sollevamento (cuscinetto di sollevamento avvitato)

1900 mm

Hauteur de levage (coussin de levage dévissé)

1960 mm

Altezza di sollevamento (cuscinetto di sollevamento+adattatore avvitato)

2060 mm

Rilascio di sicurezza

Automatique

Cuscinetti di sollevamento

2 vitesses

Adattatori di trasporto

compris

Verniciato a polvere

Oui

Protezione della catena della colonna

compris

Couvercle du moteur

compris

Kit aria

facultatif

Pulsante anti-sollevamento

Oui

Presa da 230 V collocata nella scatola di comando

Oui

Piastra del pavimento

soleil clair

Larghezza complessiva / piastra inferiore (senza motore)

3436 mm

Altezza della posta

4300 mm

Profondità di calcestruzzo richiesta (soluzione speciale)

200 mm

Lunghezza braccio di sollevamento / corto

740-1150 mm

Lunghezza braccio di sollevamento / lungo

890-1390 mm

Larghezza tra i pali

2850 mm

Altezza massima

4135 mm

Larghezza massima

2574 mm

Couleur

RAL 7016 (Anthracite), RAL 7000 (Gris)

TW242PEB4.3-400-G - Overview

Clear floor

The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

Supporting arms

Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

Post protection cover

The lift is equipped with a manual release on only one side (single-lock).

2-stage turntable

The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.

Anti-Lift-Up-Button

The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.

230 V socket

A handy 230 V socket is located directly on the control box for added convenience.

Extention adapters

On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.

Accessories TW236PE-AIR

The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.

Accessories TWLED-2B

The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.

Accessories TW242-GPV

The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.
