Réglophare – grey-line
Our TWSWE-D complies with the latest guidelines on the inspection and adjustment of car headlights.
The SLS self-levelling system is capable of compensating for floor irregularities, both vertically and horizontally, up to the legal limit within 1 to 2 seconds.

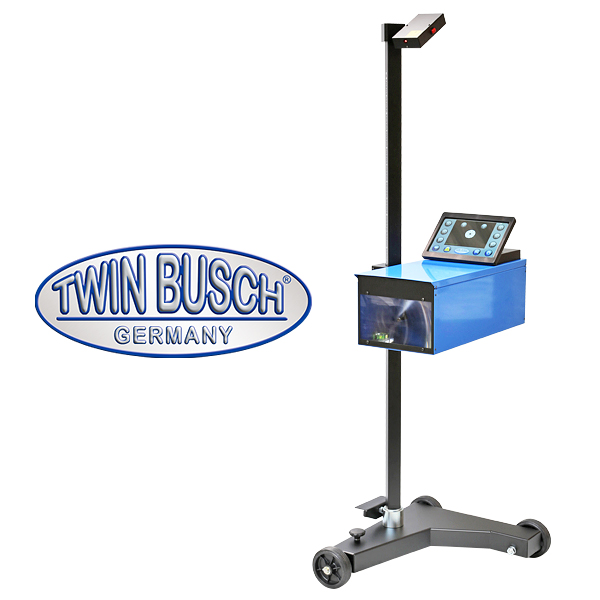

The device comprises a CMOS camera, a 10-inch tablet, as well as a laser viewfinder, a laser pointer and a digital lux meter. The device also includes a swivelling guide rod with a foot pedal and a TÜV test certificate (test number TP). An ASA interface is available as an option.
It has never been easier or more cost-effective to have a headlamp control unit that complies with the latest regulations.
Note: Class 2 red laser. No laser safety officer is required for this device.
Presentazione del prodotto
Montaggio
Caratteristiche
- The self-levelling system (SLS) is capable of compensating for uneven ground, both vertically and horizontally, in 1 to 2 seconds
- All SLS units have a maximum legal tolerance of 3 per cent, and our TW SWE-D model offers a compensation capacity of up to 10 per cent
- Officially certified by TÜV
- Fotocamera CMOS per una rapida elaborazione delle immagini
- Built-in 10-inch tablet
- Oltre al tedesco, è possibile scegliere tra diverse altre lingue.
- Easy to use thanks to automatic programme management
- Memorizzazione dei dati
- Trasferimento dei dati alla stampante o al PC tramite Bluetooth, Wifi o USB
- For all categories of vehicles, such as passenger cars, commercial vehicles and two-wheelers
- Laser pointer for accurately locating the centre of the headlamp
- Horizontal and vertical scales
- Suitable for all types of lamps: incandescent, halogen, xenon, LED and laser
- One-handed adjustable light housing with automatic locking mechanism
- Rod with a measuring scale for precise height adjustment
- Pole with pedal (swivelling)
- Built-in lux meter for measuring light intensity
- Optional ASA interface
- 2 assi regolabili in altezza
- Livella integrata
- Fornito con copertura protettiva contro polvere e sporcizia
Dati tecnici
Sistema SLS
✓
Approvato ufficialmente
✓
Vista a filetto incrociato
-
Laser sight
✓
Lux meter
✓
Puntatore laser
✓
Palo di misura
✓
Pedale ruotabile
✓
Scala di regolazione classica
-
Scala di regolazione orizzontale + verticale
✓
Per le luci alogene
✓
Per le luci allo xeno
✓
Per il LED completo
✓
Per le luci a LED
✓
Per la luce laser
✓
Fotocamera CMOS
✓
Display a colori da 10 pollici
✓
Salvataggio e trasferimento dei dati
✓
USB-Port
✓
WIFI / WLAN
✓
Bluetooth
✓
Interfaccia ASA
✓
Sistema di binari
-
Assale regolabile in altezza
✓
Coperchio di protezione incluso
✓
TWSWED - Panoramica
Contents of the delivery
- Reglophare
- Coperchio di protezione
- Libretto di ispezione
- Caricabatterie
