Wheel alignment bench – 3D wheel aligner (4 high-speed camera systems)
The TW316-G is a 3D wheel alignment system fitted with a high-speed mobile camera system comprising four cameras. With this system, we offer garages the ability to measure and align vehicles accurately and efficiently.

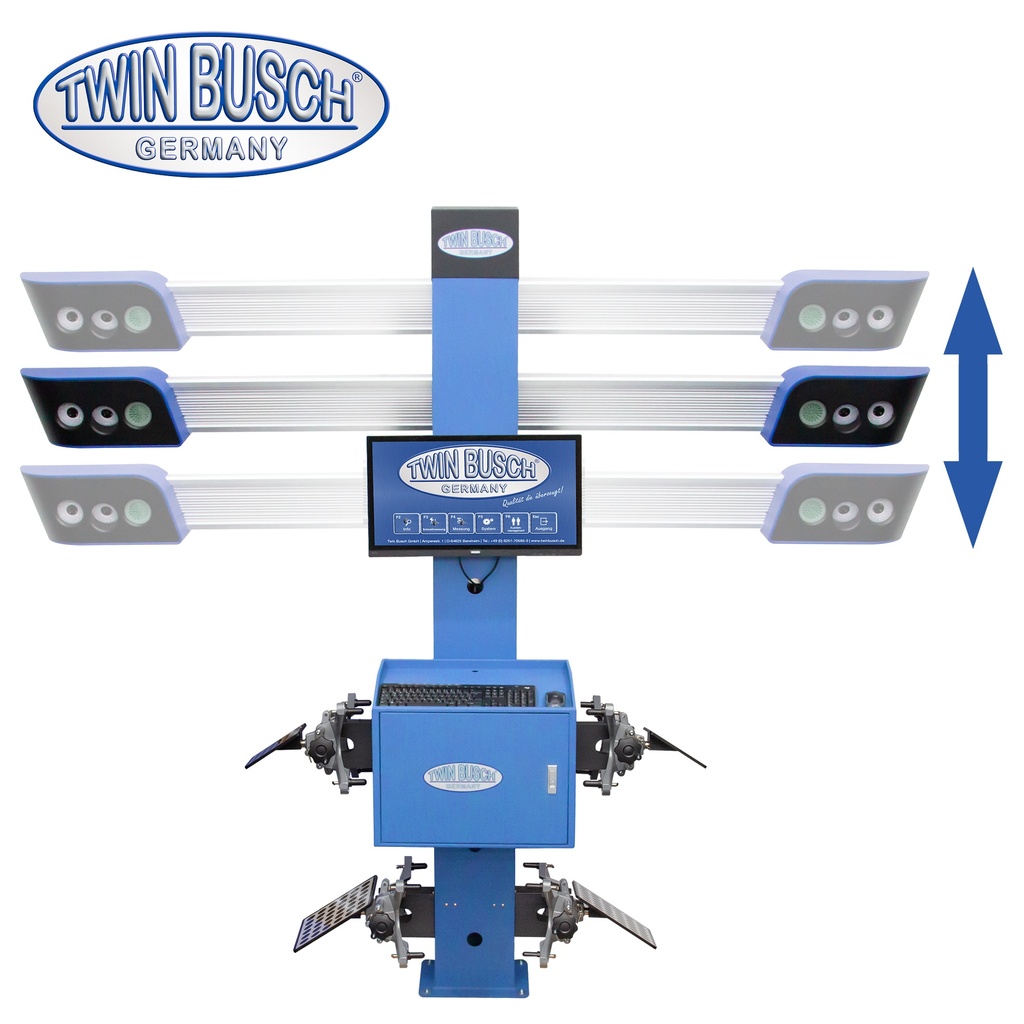

Electric lifting device for mounting cameras, featuring a “Follow-Me” function. Step-by-step guide to using the software, with a graphical guide showing the procedure to follow.
The 3D measurement system enables the vehicle’s ACTUAL dimensions to be recorded quickly and accurately. Measurements and adjustments can be carried out at any desired height of the lift.
The TW316-G system determines and calculates the following axle parameters on the vehicle: for the front axle, individual and total toe-in, including the toe-in curve, camber, caster, kingpin inclination and included angle. For the rear axle: individual and total toe, as well as camber. In addition, the wheelbase, wheel offset, track width and axle offset can be determined.
A database containing the geometric parameters for over 20,000 vehicle types. You can enter your own data into the database as required.
Special features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Software in English
- Measurements using four high-speed camera systems
- Easy to use
- Measurement range: +/- 18 degrees
- Measurement accuracy: +/- 0.01 degrees
- External tension 22 cm – 60 cm (9" to 24")
Contents of the delivery
- Mobile cabinet with PC (Windows 10)
- 3D wheel alignment machine
- Screen
- Optional printer
- Wheel alignment software
- Vehicle database
- Brake pedal actuator
- Steering wheel lock bar
- 2 turntables
- Vehicles not included
