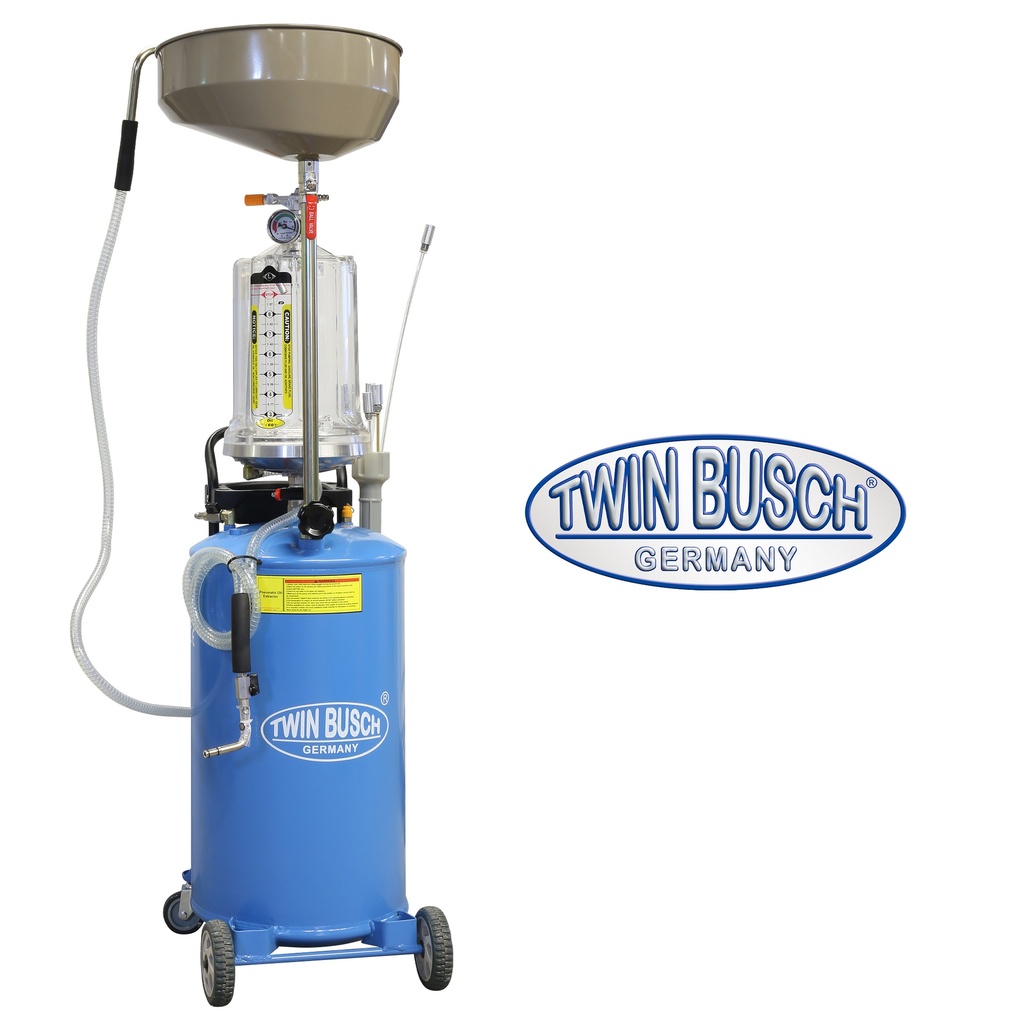

Système de collecte et d'aspiration d'huile
Présentation du produit
Caractéristiques
- 70 L Capacité du réservoir
- Récipient de mesure en verre 10 L
- 1 - 2 L/Min Capacité d'aspiration en fonction de la buse utilisée
- Pression de travail 8-10 Bar
- Vidange à l'air comprimé 1-2 bar
- Grille de rangement pour filtres à huile
- Soupape de surpression
TW21950-G - Overview |
|
|---|---|

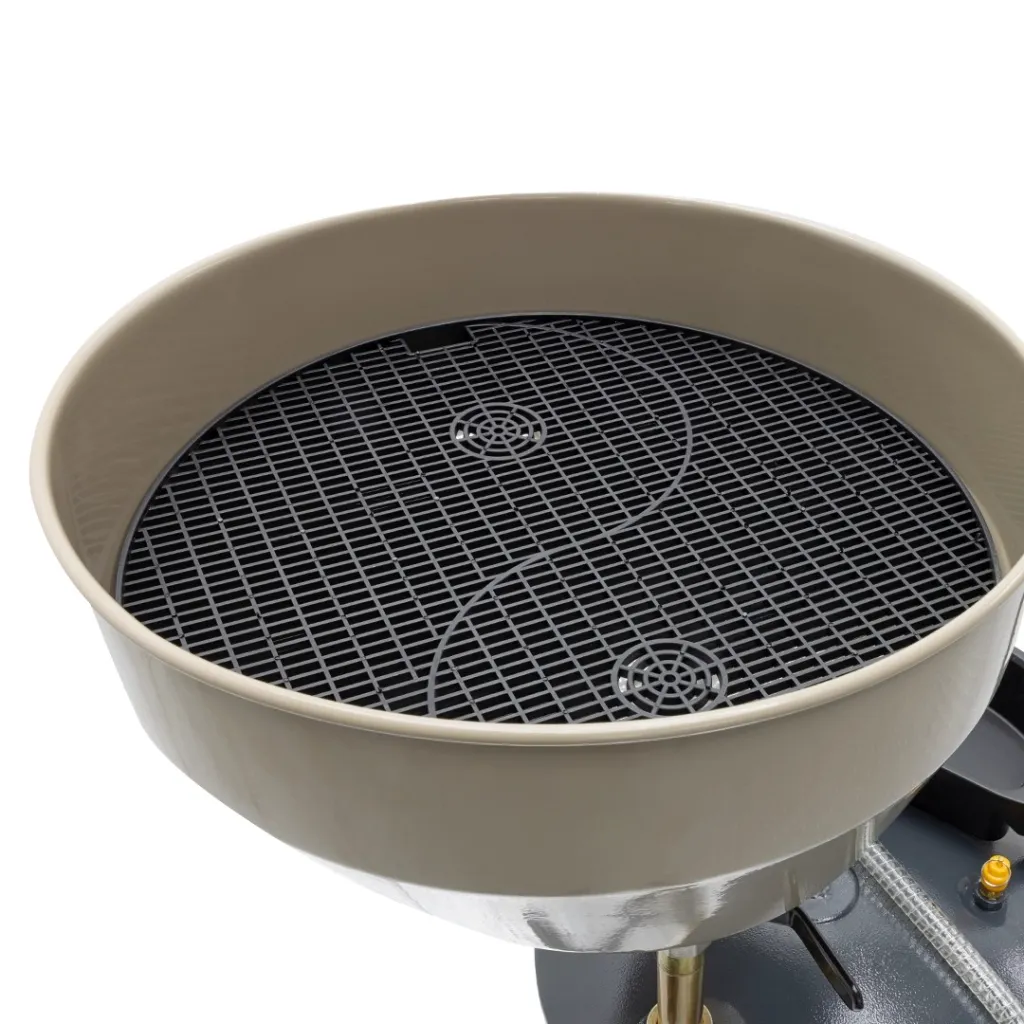

Oil collection funnelAn integrated drip tray makes it easier to drain oil filters into the oil collection funnel. |

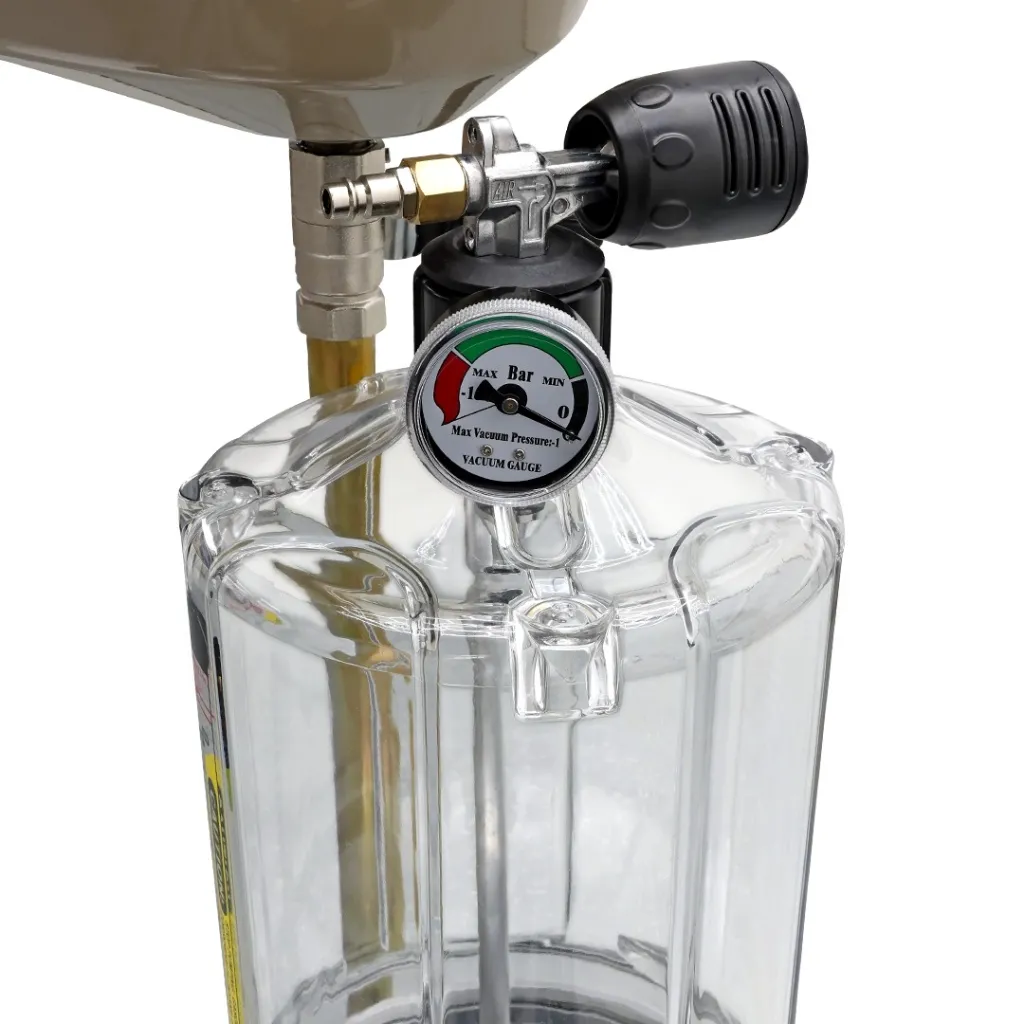

10-litre glass measuring containerThe integrated 10-litre glass measuring container allows for precise visual monitoring of the amount of oil extracted. An operating pressure of 8–10 bar is required for operation. |

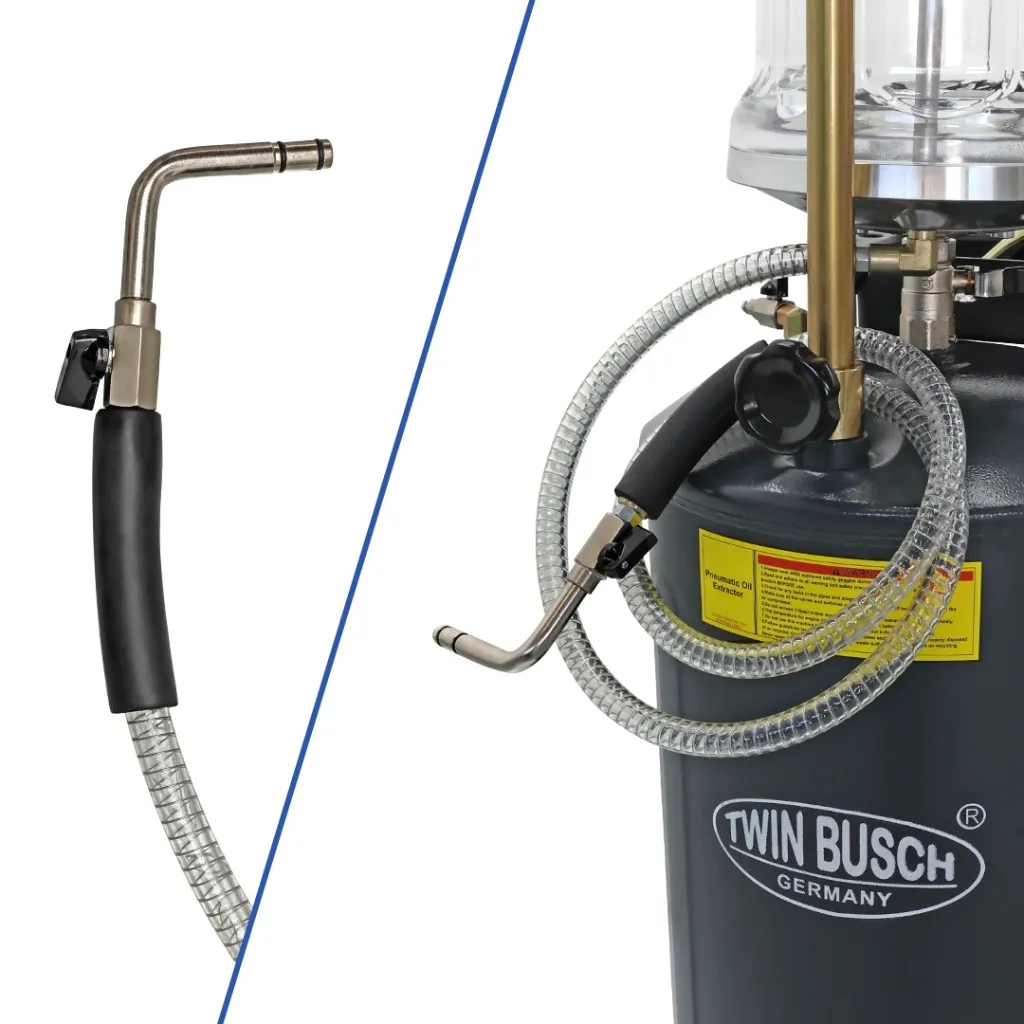

VacuumingThe suction hose transports the oil directly into the glass measuring container via the connected oil suction probes. |

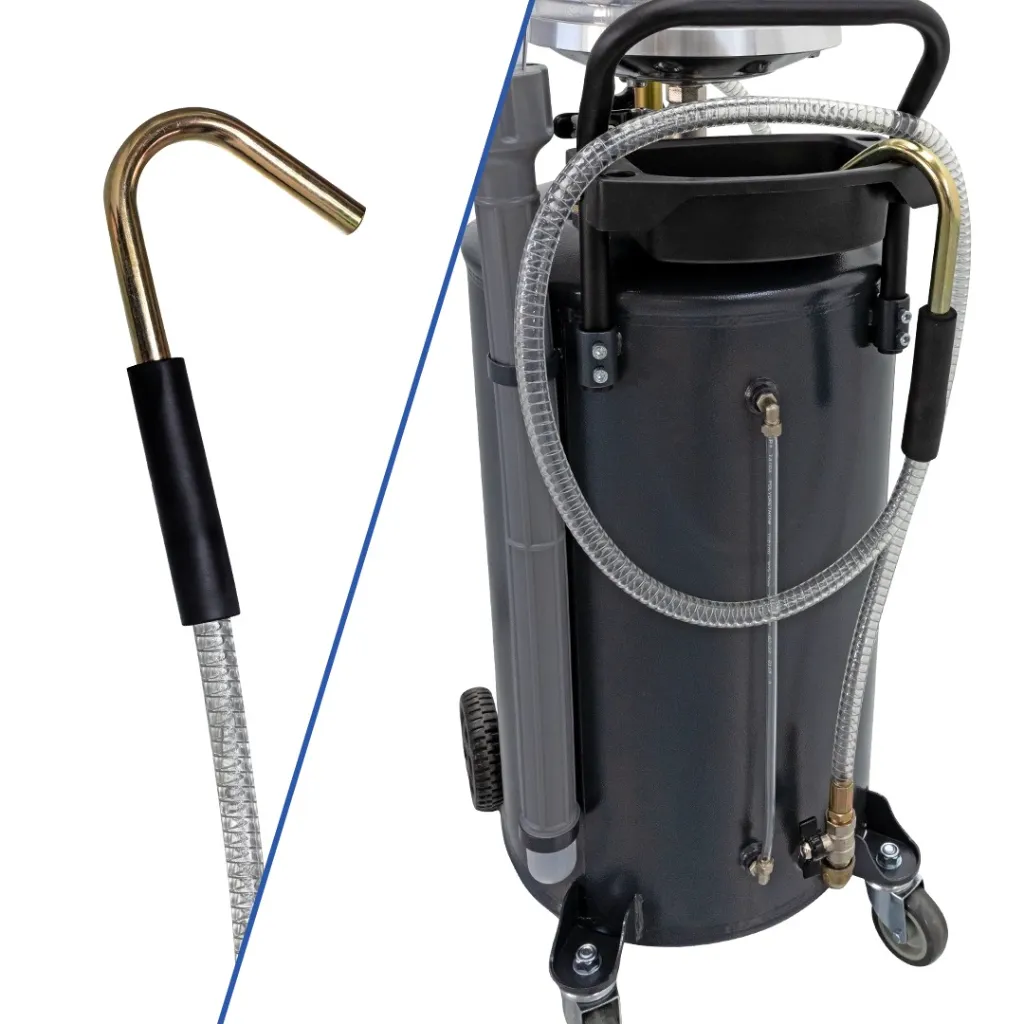

Tank drainingThe drain hose allows for quick, clean and controlled emptying of the tank. |

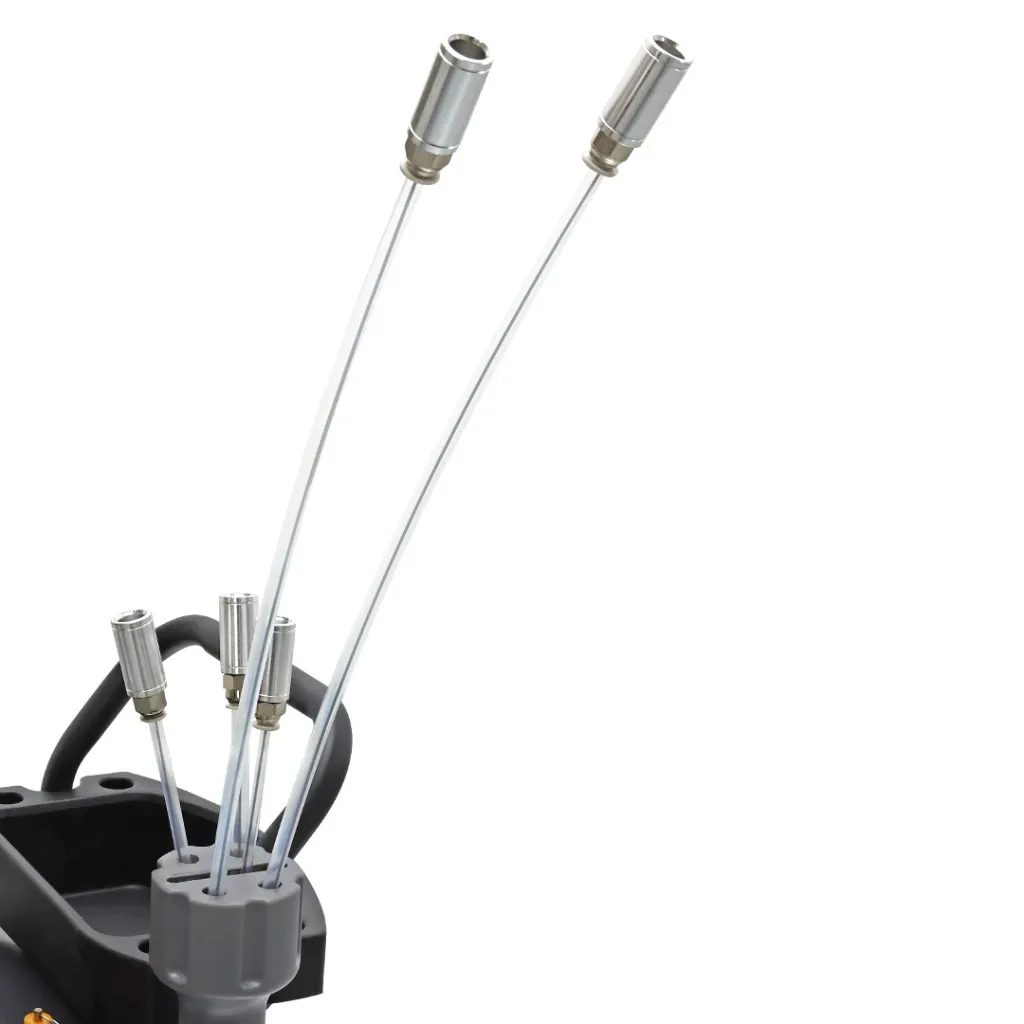

Oil extraction probesThe oil collection tank contains 5 oil extraction probes for efficient and clean operation. The probes have a suction capacity of 1–2 litres per minute. |

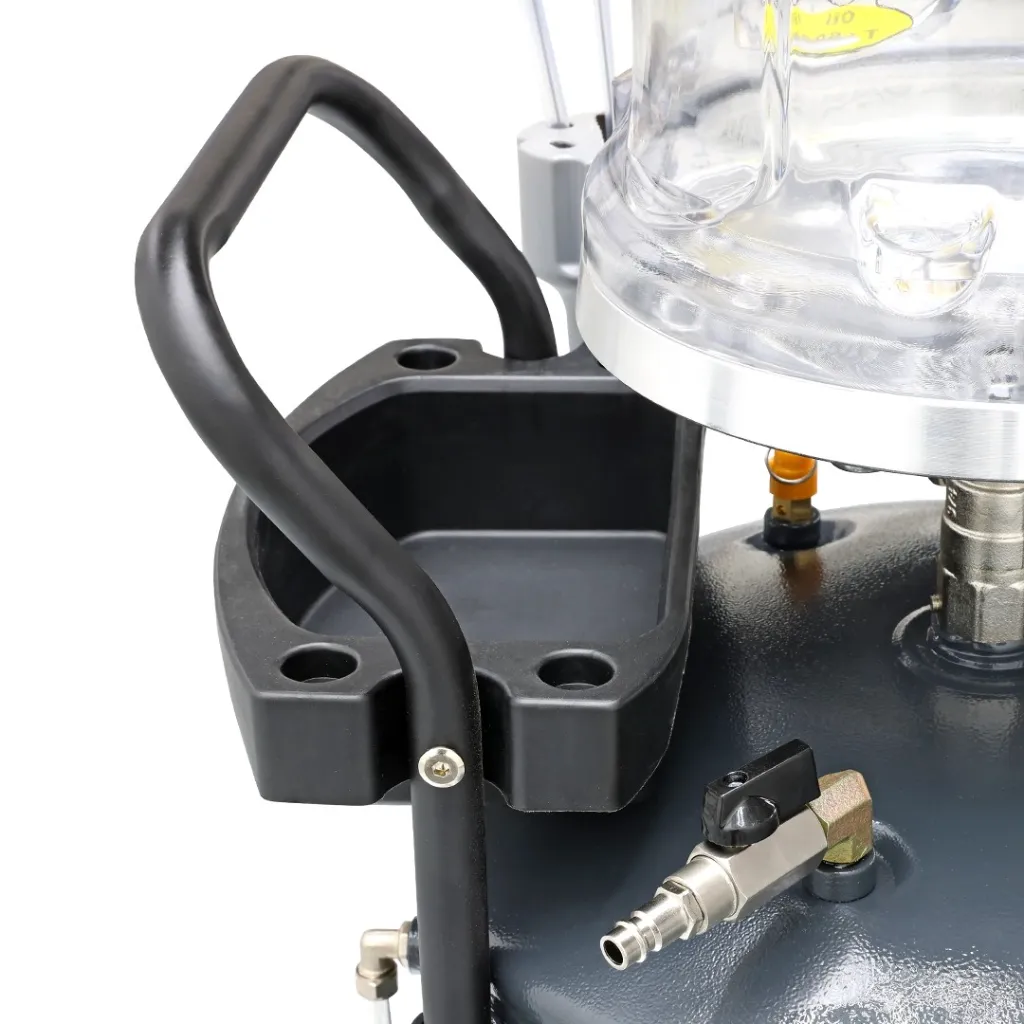

HandleThe oil collection container is fitted with a rubberised handle and a recessed shelf, for example for tools. |
Contenu de la livraison
- 1 collecteur
- 5 sondes d'extraction d'huile
