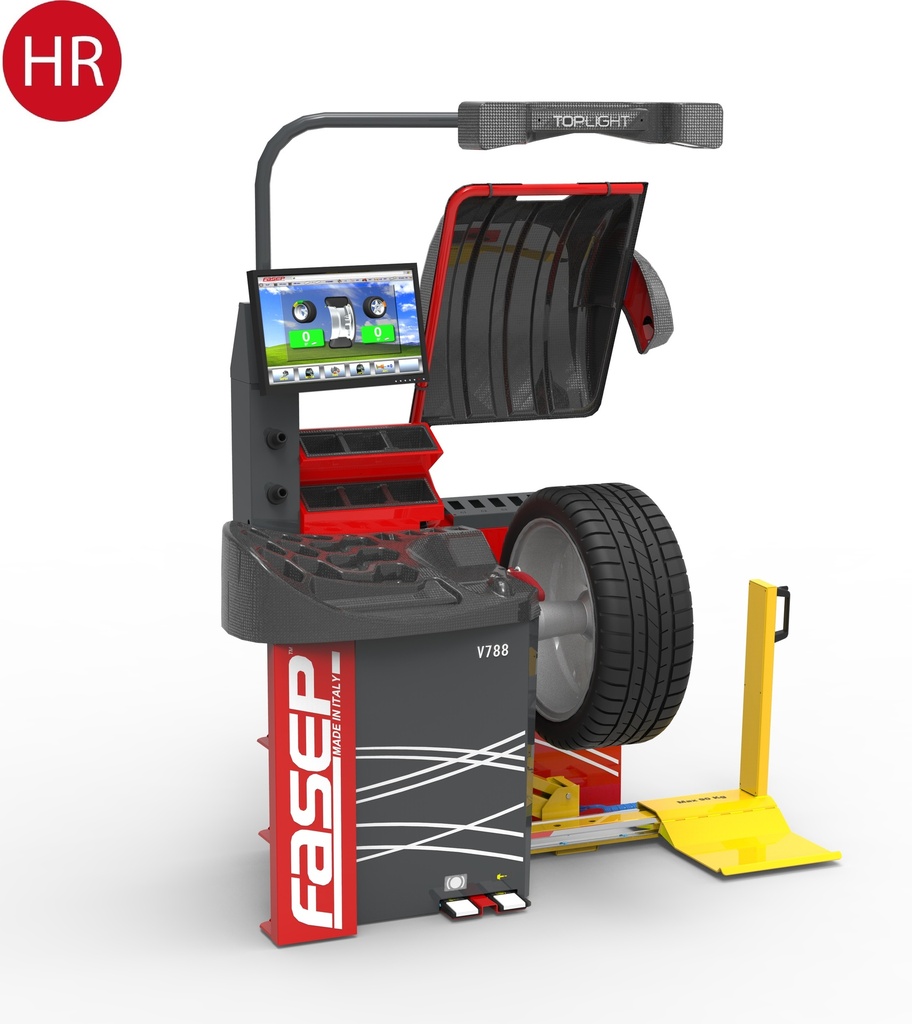

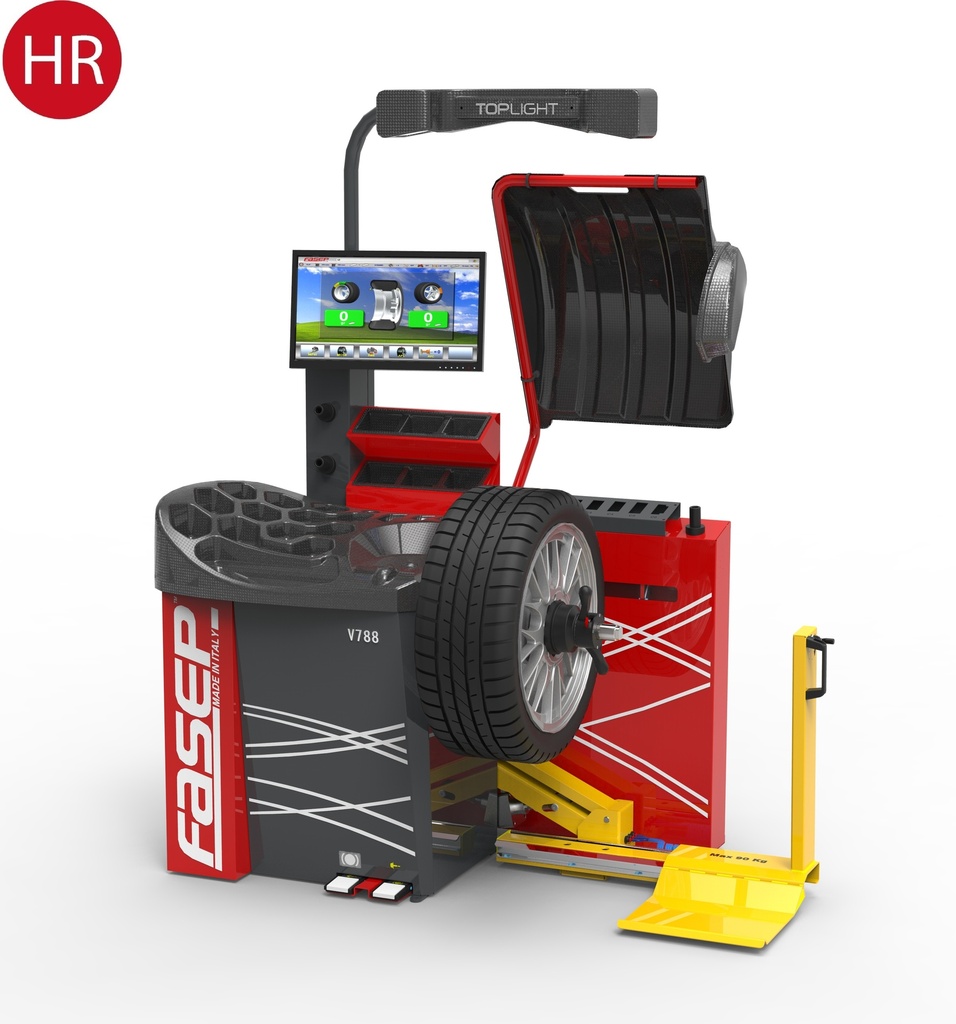

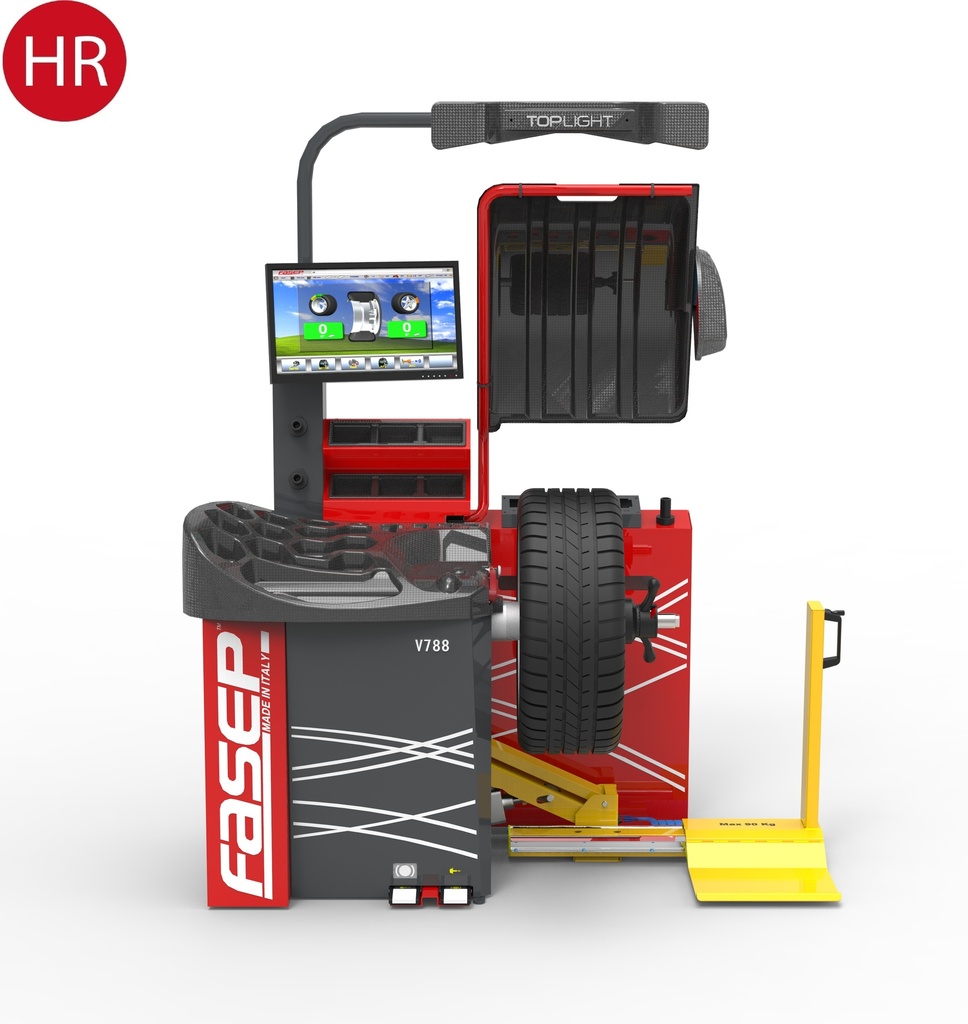

Wheel balancer - V788 Cayman

The new generation.

V788 is the wheel balancer that combines all the advantages of the FASEP balancing system in a single machine.

It differs from other wheel balancers thanks to its modern and elegant design, with the addition of TOP LIGHT which makes it inimitable.

V788 allows the operator to perform rapid balancing with maximum precision: it includes the 3D Touchless system for automatic input of wheel data, combined with the advantages of 3 lasers for applying stick-on and clip-on weights. The TOP LIGHT and LED LIGHT systems are an absolute help in providing a well-lit working area to avoid any inaccuracies. All these advantages are, of course, accompanied by the legendary FASEP 3-piezo measuring system.

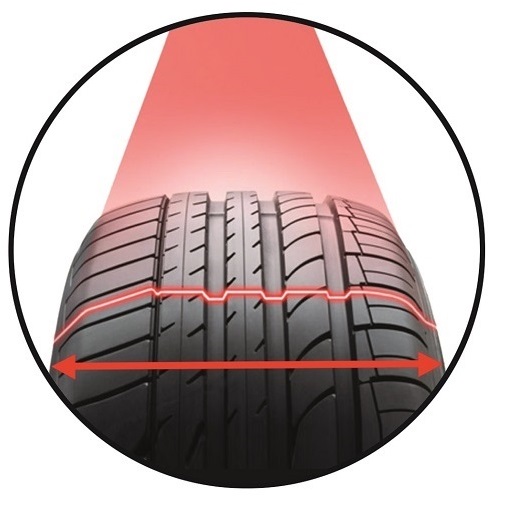

The 3D.Wall system allows the measurement of the profile of tire and run-out of tire and rim, as well as the measurement of Side Slip of tire. The system’s software suggests to the operator the best wheel position on the car to compensate the run-out.

Features

• automatic input of 3D wheel data by laser
• laser point for stick-on-weights application
• TOP LIGHT system for work area lighting and laser line for applying clip-on-weights
• electro-pneumatic lock of the wheel
• 3D.Wall system for measuring the profile of tire and run-out of tire and rim
• FASEP TriSensor 3 Piezo balancing system
• IFS (Integrated Flange Shaft)
• 16 bit electronics
• low speed motor 98 rpm
• second Generation monitor LCD Touch 22″ 16:9

Technical features

Media
